Source Database Attributes and Transformations¶
This chapter offers crucial information on the ETL process of porting all data from the various sources (Olson, Iowa, FHWA, etc.) to the NYU Load Test Warehouse. All available details on all original attributes are summarized in tables along with the new names of the target attributes that each original piece of information was ported to.
Furthermore, and as a tribute to Dr. Roy Olson, parts from his personal notes are presented verbatim (as they could not be paraphrased) in an effort to preserve the insights and design decisions that went in to developing the first advanced pile load test database which led the way for the rest us.
Olson APC Database Attributes¶
A list of issues identified by Dr. Olson in developing the APC database:
A pile capacity was reported in tons but was entered in the data base in kips but without changing the number.
A pile capacity was reported in “tonnes” with depth in meters and the capacity was interpreted as 2000-pound tons rather than the metric ton of 2205 pounds.
For steel pipe piles, sources often did not indicate whether the pile was open-ended or closed-ended.
For closed-ended pipe piles, authors often did not indicate whether the pile was full of concrete, or water, or was empty.
For closed-ended steel pipe piles, authors rarely indicated whether the base plate had the same diameter as the pile or was oversized.
For open-ended steel pipe piles, authors did not indicate whether or not a driving shoe was used.
For open-ended piles, the authors did not indicate the height of soil plug.
When data from soil borings were presented, it was often difficult to determine which boring was closest to a given pile.
In several cases, soil borings were made and the results reported. However, the pile penetrations made no sense in that the pile tip stopped in soft clay just above a good supporting layer. It was subsequently figured out that they had removed up to thirty feet of soil from the site after soil exploration but prior to pile driving.
We were non-uniform in defining what “plunging capacity” meant. Sometimes it was the peak load and other times it was the load at large settlement. They differed by up to 40% in some cases. I have decided to standardize on the peak load. We may want to add a new entry for the “ultimate” load.
In a number of cases, the authors called the foundation a “pile” but careful reading of the case history led to the conclusion that it was either a “pier” or it could have been a pier. We discarded such data.
The depth to the water table was often not provided. For sands, this was a fatal problem although sometimes we decided to estimate the location of the water table and just demote our rating of data quality. We are now trying to specify effective stresses in clays but we rarely have water tables for clays.
Sand densities were rarely specified so we have assumed values. Different people sometimes assumed substantially different values of total unit weight. We need to figure out some standard unit weight, perhaps as functions of N values and any information provided on gradation, but we have not done so yet and it will require a lot of time.
Japanese N values seem to be considerably different from ours because they have used a hammer of higher efficiency. Norm Dennis worked out a correlation but it is of highly questionable accuracy and this problem needs to be reconsidered.
We had a number of Japanese pile load tests on large diameter (usually 30”) steel pipe piles in sand. Unfortunately, the text is in Japanese. We were able to guess soil profiles based on hatchings used in boring logs and we could read the Arabic numerals to get depths and N values. Subsequently, Tung was able to translate some of the data and he concluded we had made major errors. His corrected data are in other files and will be substituted for data in the database when time permits.
From Dr. Olson’s notes on the APC database:
Most of the values of total unit weight (\(\gamma_t\)) are assumed. If water contents (\(w\)) are shown then they were used to calculate \(\gamma_t\). I used cases in which water contents were measured to calculate total unit weights for all soils and then did a correlation of those values of \(\gamma_t\) with whatever other properties were available, meaning cohesion (\(s_u\)) for cohesive soils, and SPT-N values for all soils, and used these other properties to estimate \(\gamma_t\) for cases in which water contents were not defined. The correlations were often bad but at least they gave a consistent basis for estimating \(\gamma_t\).
The elevation of the water table was usually unknown for profiles of all clay. If I thought a reasonable value could be assumed, I did so and there are typically no notes indicating EWT was assumed (I added notes later when I thought of it). If EWT is to be left undefined, then EWT=+1, which is code that EWT is unknown.
In all soils, I assumed the pore water pressure above the water table was zero. This value is nonsense but it is typically irrelevant in cohesionless soils (they may not even be saturated). In clays, the pore water pressure is relevant but can’t be calculated so I discourage use of effective stress methods for clays.
The wall thickness of steel pipe piles was often an assumed value. The wall thickness is used in calculating pile weight, W, and the pile compressibility, AEOL, but the correction for W is small so the error is even smaller, and AEOL is only used with Davisson’s method, and I usually didn’t use it as a failure criterion.
The tip condition for steel pipe piles was often unknown. Sometimes, I could infer it from discussion in the text or from discussions with engineers who were more familiar with local practice. For closed-ended pipes, I rarely knew the diameter or thickness of the cover plate. Sometimes I could magnify a drawing to estimate whether the cover plate had a larger diameter than the pile or not but that was often not possible. I used a displacement ratio exceeding 1.00 to indicate the presence of an oversized cover plate.
Originally we made data quality factors range from 0 to 5, then we discarded the 0’s, and finally used only DQF=3-5. However, the DQF cannot be used except in the crudest manner. In the common case, we use N to estimate QS. If we have only N values at a clay site the case might warrant a DQF of 5, whereas if we try to use an effective stress method and we know neither EWT nor TUW (common) then the test might be a 1. As work evolved, we started using only data with DQF of 3-5 so I’ve altered DQFs to be at least 3 if the test was good enough to be used.
Originally, working under very adverse conditions (horrible computer problems, need to generate quick results for API for a very crude analytical method, inexperience, etc.) Dave Winter generated a lot of data. Norm Dennis then came in and altered most of the data sets Dave had set up. Subsequently, other MS students Tim Aschenbrenner, Khalil Al Shafie, Kuan Chu, Magued Iskander, etc.) generated some new data. Most of the data so generated had obvious errors due to inexperience. I went through many of the tests and modified all of them. The variable ``REOChk`` was added and made true if I had examined the data. Subsequently, I changed many tests I had done. The result is that all of the data are in question. The main problem is that source documents did not contain critical information, or we did not understand what was critical and get it recorded. In some cases, a single case was reported in several papers with different results, or we talked with someone who knew the case, e.g., Bob Semple regarding West Sole and Kontich, and we were informed that the published data contained errors, but revised data were not available.
The source data forms, and format of the computer database have changed massively over the years. Originally, the entire digital database had to fit on one 360KB 5-1/4” floppy disk, the source forms were written in pencil on typed forms. As the forms evolved, we often, but not always, noted material as notes, and then later rewrote the form to include the needed information, but we never had time to go back to the source documents to extract the new data. The paper documentation now is digital and exceeds 1 GB, and this digital database exceeds 11,000 lines and occupies more than 600 KB. Because of limits on storage (PC’s were limited to 640 KB in RAM), the original data were much compressed, e.g., we might have reported only a single layer of clay being penetrated by the pile whereas there were, in fact, a number of layers.
The cone data are very deficient, mainly because of lack of use in the U.S. at the time of these cases.
Interpretation of the output from the analytical program is difficult unless the user can memorize data for all of the tests, which seems possible only for small subsets of data. To remind users of problems, the data base can have one field of up to 30 columns, starting with an ``*`` and that field is output in the Excel output, typically warning the user of problems. In addition, lines starting with ``!`` are comment lines in the database and are not processed in the analysis. The ``*`` and ``!`` lines come after the LTN BLANK line (needed in order to use the same code with Caltrans data) and before alphanumeric data.
This database has not been updated significantly since 1982 and there have been a lot of results published or provided from company files since then.
The APC database has been partially converted to a format used on a different project but there are a few remnants of material that were relevant to an earlier format so do not anticipate that every item in this database has a use currently.
I followed the LTN BLANK line with an ``*`` to indicate that I had checked this data base against the printed summary form.
We added the field for set-up time much later. I went back to find values for tests but I’m not currently clear (March 2004) as to the code used to indicate that the value is unknown. I suspect that both 0 and -1 were used to indicate lack of information. I will gradually try to convert to -1 for unknown but I lack time to recheck all such cases so I’ll put a note in the data set when I made such a change.
The original N values are quite uncertain because of the lack of data on hammer efficiency and the vague statements in some papers that N was the “standard penetration resistance” but there was no indication that it was the ASTM standard. For example, I suspect that “standard” may have been a local standard, e.g., from a highway department or a consulting firm.
The corrected N values here exceed the uncorrected values but I don’t remember how the correction was made. I suspect I assumed a hammer efficiency less than 60%.
I changed some CONC piles to RayC piles and changed some values of EVSO after looking at source data forms. Most of the piles had D=54 inches.
Defined failure occurs when Davisson’s criterion is satisfied, i.e., when S=+ 0.15” + 0.01Db. Generally, we used 29,000 ksi for the E of steel, 3000 ksi for unreinforced concrete, 4500 ksi for reinforced concrete, and 1700 ksi for timber. For tension tests we should ignore the tip term but it appears that in most cases we did not ignore that term. The ultimate load is the largest load that the pile sustained in the test. For piles in sand, the ultimate load was usually just the final load because plunging failure does not occur. There are some known inconsistencies in the ways we interpreted some data. For example, for a constant rate of penetration (CRP) test in clay, I reported the peak load as both the ultimate and defined failure loads whereas some of the students appear to have used Davisson’s criterion directly (it would come after “failure”) and defined ultimate as the final plunging load (less than the peak). Similarly, if a pile was loaded to failure, unloaded, and reloaded to a larger load than it could sustain the first time, I used the first loading only whereas some of my students may have used the second loading. For piles with a great length above the ground surface, e.g., offshore, we assumed that reported loads were butt loads and we increased the loads by the weight of the pile above the ground surface.
Variable Name |
Description |
New DB Attribute Name |
|---|---|---|
Comment |
Normally a description of the project |
|
Warning |
A field of up to 30 columns warning the user of problems |
|
LTN |
Load test number |
|
Type |
Pile type. Allowed values are TIMB (timber), CIPC (cast-in-place concrete), CONC (precast concrete), STLP (steel pipe), HPIL (H piles) and RAYC (Raymond) |
|
Shape |
Pile shape. Allowed values are SQRE (square, used for H piles as well as other square piles), CIRC (circular), OCTA (octagonal), and HEXA (hexagonal) |
|
Load |
Load direction. Available options: COMP, TENS |
|
Len |
The entire length of the pile used in the calculation of AE/L (feet) |
|
ExpL |
Distance from the top of the pile to the exposed soil surface (feet) |
|
DR |
The ratio of the area of pile material at the tip to the area of the enclosing geometric shape. For open-ended pipe piles it is (D-D)/D. If the pile was driven open ended and then drilled out and filled with concrete, this value was set at 1.0. If the pile has an oversized cover plate, the displacement ratio was set at 1.0 or larger |
|
Tapr |
Boolean (T/F), TRUE for a tapered pile |
|
AEOL |
AE/L in kips/inch |
|
Wgt |
Pile weight (kips), not submerged |
|
Site |
Site name |
|
Loc |
The geographic location of the load test |
|
PD |
Diameter of a circular pile and distance across the flats for a square, octagonal, or hexagonal section (inches) |
|
LD(i) |
For tapered piles only: Distance from pile butt to point i (feet) |
|
CIR |
Pile circumference (feet) (steel/soil for HPIL) |
|
PROF |
Predominant soil. Available options: SAND, CLAY, or SACL |
|
NL |
Number of soil layers |
|
EWT |
Elevation of water table from ground surface (feet), +1 to indicate that EWT was unknown |
|
SQF |
Sample quality factor (0: nature of the sampler is unknown; 1: driven heavy-walled samplers, e.g., the standard sampler; 2: driven samplers of higher quality than for #1, e.g., offshore wireline samplers and Dames and Moore (D&M) sampler; 3: pushed 2” shelby tube (ST) samplers, driven 3” ST, Swedish foil sampler; 4: pushed thin-walled samplers, generally fixed piston, 3” or more; 5: top quality samples, generally trimmed samples taken using a fixed-piston thin-walled sampler, often 5” diameter; hand carved from blocks) |
|
IC |
=0 if EVSO is fixed (perhaps a cased off upperlayer was left out of the compressed database but the EVSO values were calculated for the real profile which is not shown here), =1 if EVSO can be changed (means the whole profile is shown) |
|
Vib |
Boolean (T/F), TRUE if any part of driving was by vibration |
|
REO |
Boolean (T/F), TRUE if data was checked by Dr. Olson |
|
TS |
Boolean (T/F), TRUE if checked by an unknown party |
|
UTB |
Boolean (T/F), TRUE if University of Texas (UT) Boring |
|
UTS |
Boolean (T/F), TRUE if University of Texas (UT) Sounding |
|
Case |
Boolean (T/F), TRUE if cased |
|
PDr |
Boolean (T/F), TRUE if predrilled. The later data forms show evidence of preboring, where appropriate. In some cases, we suspect that the authors of the reports simply neglected to mention preboring. In other cases, they mentioned it in obscure places in the report (we found such cases). In many cases, piles were probably prebored and no mention is made in the report. |
|
RDr |
Boolean (T/F), TRUE if relief drilled |
|
Jet |
Boolean (T/F), TRUE if jetted |
|
Soil |
Soil type (COBB, SICL, etc.) |
|
HL |
Soil layer thickness (feet) |
|
EVSO |
Mean vertical effective stress (ksf) |
|
TUW |
Total unit weight (kcf) |
|
WC |
Water content (%) |
|
LL |
Liquid limit (%) |
|
PI |
Plasticity index (%) |
|
UU |
Unconfined shearing strength (ksf) |
|
FV |
Field vane shearing strength (ksf) |
|
MS |
Shearing strength from Torvane, penetrometer, etc. (ksf) |
|
QT |
Shearing strength from Q triaxials (ksf) |
|
N |
Measured (uncorrected) N value (bpf). This is all we have now because details of the techniques were rarely reported and the data were never reported by us. Most of the older data used a manual drop hammer (low efficiency) and the rods were 3/4 in. heavy duty water pipe (low efficiency) |
|
Nc |
N values corrected to 60% efficiency (bpf). |
|
QC |
Cone tip resistance (ksf) |
|
FSL |
Cone sleeve shear (ksf) |
|
QCT |
Measured capacity at 0.5-inch butt settlement (kips) |
|
QMDT |
Measured capacity at Davisson’s point (kips) |
|
QMP |
Peak applied load (kips) |
|
QBF |
Capacity extrapolated per Brown-Fleming (kips) |
|
SFD |
Butt settlement at Davisson’s failure point (inches) |
|
SFP |
Butt settlement at 95% of the peak applied load (inches) |
|
DQF |
Data quality factor. The DQF represents our qualitative view of the overall quality of the data. (5) indicates outstanding data. Generally we knew the author. There were soil borings very close to the pile and numerous soil tests were performed. The SQF was high. The soil profile was uniform enough that we thought the soil conditions at the load test point were well known. There was a reasonable set-up time for the pile. The pile was often instrumented. (1) indicates major uncertainties. For example, the soil profile may vary widely from place to place on a site and there is no boring right next to the pile. In other cases the only measure of clay strength is an N value. In some cases the measured soil properties scattered greatly with respect to depth. In some cases the driving record did not compare with the soil profile, e.g., a sudden increase in driving resistance at the end when there was no evidence of a stronger layer at that depth. |
|
SetUpTm |
Set up time (days) |
|
Ref |
The reference number (reference to a paper, report, etc.) from the reference list in a separate file |
|
Iowa PILOT Database Tables and Attributes¶
Original Attribute |
Description |
Sample Record |
New Attribute |
|---|---|---|---|
ID |
A unique cataloging number automatically assigned by Microsoft Office Access to each record within PILOT. |
269 |
|
Test Folder |
A database field that specifies the location of the pile load test records for each load test contained within the database. The directory housing these various pile load test records, the Pile Load Tests Records Directory, is organized by three volumes. Volume 1 consists of pile load test records for steel H-piles, Volume 2 consists of pile load test records for prestressed concrete, Monotube, and steel pipe piles, Volume 3 consists of pile load test records for timber piles, and Volume 4 consists of pile load test records for those piles tested as a part of IHRB Project TR-583 (Ng et al., 2010). Therefore, the possible entries into this database field are as follows: Volume 1, Volume 2, Volume 3, or Volume 4. |
Volume 4 |
|
Lab Number |
The identification number used by the Iowa DOT to distinguish between the various test piles (e.g., AXP0-1, AXP1-9, etc.). |
ISU5 |
|
Contractor |
The name of the contracting company responsible for the construction of the specified bridge project including driving of the test pile. |
Herberger Construction Co., Inc. |
|
Project Number |
The unique Iowa DOT cataloging number assigned to each construction project. |
BRFIMX-035-1(105)33–14-20 |
|
Design Number |
This database field goes hand in hand with the previously described field (Project Number). For every construction project in the State of Iowa, in addition to assigning a unique project number, each bridge project within the construction project is assigned a unique design number. The bridge design number corresponding to a specified pile load test is entered into this database field. |
109 |
|
County |
This database field utilizes a drop-down menu for simple selection of the Iowa County in which the specified bridge construction project is located. |
Clarke |
|
Township |
This field allows one to manually enter the name of the township corresponding to the location of the specified Iowa bridge construction project. |
Ward (T-72-N R-26-W) |
|
Section |
This numerical database field allows one to manually enter the section number in which the specified Iowa bridge construction project is located. |
24 |
|
Pile Location |
This text database field allows one to manually enter a short description of the test pile location in relation to the features of the bridge under construction. For instance, a typical description will specify if the test pile was located near an abutment or a pier. Furthermore, either the pile number or a detailed narrative identifying the exact location of the pile within the abutment or pier is usually provided. |
South Side of U.S. 34 Median - East of the East Abutments |
|
Tested By |
This text database field allows one to manually enter the names of those people who were responsible for carrying out the pile load test on the specified pile. |
AbdelSalam - Ng - Roling |
|
Date Tested |
In this database field, which has been formatted to accept dated entries of the form: Month/Day/Year (e.g., 3/8/1984), the date on which the pile static load test was conducted on the specified pile is specified. |
5/28/2009 |
|
Date Reported |
In this database field, which has been formatted to accept dated entries of the form: Month/Day/Year (e.g., 3/8/1984), the date on which the pile load test results for the specified pile were reported to the Iowa DOT is specified. |
4/27/2010 |
|
Pile Type |
This database field utilizes a drop-down menu for simple selection of the test pile type and size. The options available for selection in this database field are as follows: Steel H-Piles (10X42, 10X57, 12X53, 12X74, 14X73, 14X89, and Steel H – a generic option that may be utilized for instances where the exact Steel H pile size is unknown), Monotube Piles, Steel Pipe Piles (10-in, 12-in, 16-in, and 18-in outside diameter), and Timber Piles (18-ft, 20-ft, 25-ft, 30-ft, 34-ft, 35-ft, 40-ft, 45-ft, 50-ft, 55-ft, and 60-ft length or Timber – a generic option that may be utilized for instances where the exact timber pile length is unknown). |
HP 10X42 |
|
Date Driven |
In this database field, which has been formatted to accept dated entries of the form Month/Day/Year (e.g., 3/8/1984), the date on which the specified test pile was driven is included. |
5/19/2009 |
|
Design Load |
(TONS) This database field specifies the total sum of all design loads for which any given pile in the structure is anticipated to support based on the superstructure loading evaluation accomplished using either WSD or LRFD principles. In other words, the given pile must possess a bearing resistance equal to or greater than this value to ensure the safety of the structure. For all piles driven prior to October 1, 2007, the reported value in this field corresponds to the WSD design load while LRFD design load is included for all piles driven after this date, since it corresponds to the FHWA’s mandate on the use of LRFD for all new bridge construction. |
N/A |
|
Formula Bearing (TONS) |
This database field specifies the anticipated bearing resistance for a given pile as determined through the use of the Iowa DOT Modified ENR dynamic pile driving formula, which is supplied in Article 2501.13 of the Iowa Department of Transportation Standard Specifications, Series 2008 (Iowa DOT, 2008) and is discussed in more detail in Chapter 3 of AbdelSalam et al. (2010). |
38.3 |
|
Hammer Type |
This database field contains information about the type of hammer used for driving the test pile. Examples of possible entries into this database field include: Gravity, Kobe K-13, and Delmag D-12; the last two examples specify both a brand and series number. |
Delmag D16-32 |
|
Initial Bored Hole Depth (FEET) |
Depth of Hole Bored before Driving Pile (ft): The depth, in feet, of the hole bored to initiate pile driving of the specified test pile. (A value of zero in this field indicates that no hole was bored prior to driving.) |
0 |
|
Embedded Pile Length (FEET) |
Length of Test Pile in Contact with the Soil (ft): The length, in feet, of the test pile in direct contact with the soil |
55 |
|
Pile Toe Elevation (FEET) |
Elevation at the Bottom Tip of the Test Pile (ft): The elevation, in feet, at which the toe of the driven test pile resides with reference to the mean sea level datum. |
N/A |
|
Maximum Applied Load (TONS) |
Highest Gauge Reading Under ### Ton Load (in): Based upon the SLT results for the specified pile, the maximum load experienced by the pile is recorded where the number signs (i.e., ###) appear in the above statement and the displacement gauge reading, in inches, corresponding to this maximum applied load is included in the database. |
131.5 |
|
Highest Gauge Reading (INCHES) |
(description as above) |
0.53 |
|
Rebound Time Duration (MINUTES) |
Gauge Reading after Load Released for ### Minutes (in): The final entry into each record’s static load test table shows a load of zero tons and a corresponding non-zero gauge reading. This gauge reading represents the rebound of the specified pile after the release of the maximum applied vertical load for a given period of time. The time between the release of the maximum applied load to the pile and the subsequent recording of the final gauge reading is added where the number signs (i.e., ###) appear in the above statement. The final gauge reading, in inches, is then specified in the database. |
10 |
|
Rebound Gauge Reading (INCHES) |
(description as above) |
0.558 |
|
Record Complete |
All Record Data Entered?: This yes/no database field was created mostly for the one(s) responsible for the data entry procedures, so that an easy distinction could be made between those records still requiring data to be entered and those that had been termed complete. When all available information has been entered for a specific record, this field receives a check mark. |
YES |
|
Record Comments |
Any pertinent additional information regarding the record as a whole is included in this text database field. |
N/A |
|
Attachments (1) |
These six hyperlink database fields were created so that important information related to each pile load test could be easily accessed from the PLTRF. The hyperlinked text descriptions found within these database fields maintain a direct path to the file of interest. |
(hyperlink) |
|
Attachments (2) |
(description as above) |
N/A |
|
Attachments (3) |
(description as above) |
N/A |
|
Attachments (4) |
(description as above) |
N/A |
|
Attachments (5) |
(description as above) |
N/A |
|
Attachments (6) |
(description as above) |
N/A |
|
Davisson Pile Capacity (TONS) |
Utilizing the static load test results supplied for each pile, the Davisson failure criterion was utilized to determine the ultimate pile capacity (i.e., the dependable pile resistance). The Davisson failure criterion states that the ultimate load of a pile subjected to a vertical load test is the load which the displacement of the pile exceeds the elastic compression of the pile by 0.15 + D/120 inches, where D is the pile depth or diameter (Davisson, 1972). The elastic compression of the pile is simply the length of the pile divided by its elastic modulus and cross-sectional area (i.e., the pile stiffness), then multiplied by the applied load. The Davisson pile capacity established for each pile SLT is provided in this numerical database field. |
121 |
|
Static Load Test Remarks |
Any additional comments or information relating to the pile SLT results are supplied in this text database field. Examples of information presented in this database field include the time duration step used for each load increment and pertinent test reliability information such as observed pile punching, pulling out of anchor piles, or no observed yielding of the test pile. |
N/A |
|
Load Test Reliability Classification |
This yes/no database field receives a checkmark if the SLT data for the specified pile is considered reliable. A reliable test is one in which the test pile reached its displacement-based capacity (i.e., the Davisson pile capacity) with no anchor piles being pulled out prior to its achievement. If the SLT data for a specified test pile does not meet this criterion, then the test is considered unreliable and this database field is left unchecked. |
YES |
|
Total Soil Profile Thickness (FEET) |
This database field refers to the average soil profile table. Based upon the average soil layer data found in this table, the sum of the thicknesses of the various soil strata identified in the table is reported in this field. |
55 |
(skipped, can be calculated) |
Total Skin Friction (TONS) |
Calculated Total Skin Friction Using Design Charts (Tons): This field refers to the average soil profile table. Based upon the average soil layer data found in this table, the sum of the total skin friction values listed for each of the various soil strata identified in the table is reported in this database field. |
71.2 |
(skipped, can be calculated) |
Theoretical End Bearing (TONS) |
Calculated End Bearing Using Design Charts (Tons): The value input into this field is determined through the use of the average soil profile table and the design chart found in the Iowa LRFD Bridge Design Manual (Iowa DOT, 2010). Based upon the average blow count (i.e., NAVG) value obtained for the soil layer in which the test pile toe resides and the aforementioned design chart, a nominal end bearing value is established and recorded into this database field. |
3.1 |
|
Theoretical Pile Capacity (TONS) |
Total Pile Capacity Using Design Charts (Tons): The value input into this database field is the result of the addition of the value for Calculated Total Skin Friction Using Design Charts and the value for Calculated End Bearing Using Design Charts. |
74.3 |
|
Factor of Safety |
Capacity Ratio: The value entered into this database field is the result of dividing the value for Davisson Pile Capacity by the value for Design Load. |
N/A |
(skipped, can be calculated) |
Test Site Soil Classification |
This database field holds the predominant soil medium (i.e., sand, clay, or, mixed) encountered along the shaft of the test pile. When at least two soil types are present along the shaft of the test pile and none account for 70 percent or more of the soil profile encountered along the shaft of the test pile, then a mixed soil classification is used to describe the predominant soil medium. |
Clay |
|
Total Number of Boreholes |
The total number of boreholes drilled for the corresponding construction project. This information is taken from the relevant project Situation Plan Sheet. |
9 |
|
Boreholes With SPT Data |
Total Number of Borehole with SPT Data: The total number of boreholes possessing soil penetration data or SPT N-values. This information is taken from the relevant project Sounding Data Plan Sheet. |
2 |
|
Borehole at Test Pile Location |
Borehole(s) near Test Pile Location: This yes/no database field receives a checkmark if a borehole is located within 100 feet of the specified test pile location. If no borehole is located within 100 feet of the test pile location, the field is left without a checkmark. |
YES |
|
Borehole Numbers at Test Pile Location |
When the Borehole(s) at Test Pile Location database field is checked, the identification number associated with each of the boreholes located within 100 feet of the test pile location is reported in this text database field. Otherwise, if no boreholes are located within 100 feet the test pile location, the word ‘None’ is entered into this database field. |
ISU5 - Conducted by TEAM Services |
|
SPT at Test Pile Location |
SPT Data Available near Test Pile Location: When any of the boreholes listed in the Borehole(s) at Test Pile Location database field possess SPT data, then the identification number of such boreholes is repeated in this database field. If none of the boreholes listed in the Borehole(s) at Test Pile Location database field have SPT data, then the word ‘None’ appears in this database field. Although, if the soil profile at the test pile location matches that of any of the boreholes with SPT data, even though these boreholes are not located at or within 100 feet of the test pile location, the resulting information for such boreholes is also provided in the soil profile table. |
ISU5 - Conducted by TEAM Services |
|
Usable-Static Test |
This yes/no database field receives a checkmark if a checkmark already exists in the Reliable Load Test? database field and if there is acceptable SPT data available at or within 100 feet of the test pile location. |
YES |
(skipped) |
Water Table Location (FEET??) |
The elevation at which the groundwater table is encountered at the site of the test pile is included in this database field. Such information is taken from the relevant Sounding Data Plan Sheet. |
36 feet Below Ground Surface |
|
Pile Length (FEET) |
The total length of pile, in units of feet, placed in the leads of the pile driving rig is inserted into this database field. |
60 |
|
Pile Cross-Sectional Area (SQ. INCHES) |
The total cross-sectional area, in units of square inches, of the pile driven for load testing purposes is inserted into this database field. |
12.4 |
|
Weight of Pile (LBS) |
The total weight, in units of pounds, of the pile driven for load testing purposes is inserted into this database field. This pile weight should be in agreement with the length of pile specified in the database field Driven Pile Length. |
2520 |
|
Effective Weight of Hammer (LBS) |
Hammer (Ram) Weight (lb): This numerical database field presents the total dynamic weight, in units of pounds, of the hammer used for driving the test pile. The dynamic weight of the hammer is determined by taking the total static weight of the hammer less such deductions resulting from air resistance, lead friction, etc. |
3520 |
|
Weight of Cap (LBS) |
The total weight of the cap, in units of pounds, used while driving the test pile is inserted into this database field. |
2050 |
|
Weight of Anvil (LBS) |
The total weight of the anvil, in units of pounds, used while driving the test pile is inserted into this database field. |
810 |
|
Hammer Stroke (FEET) |
The average height above the pile head, in units of feet, from which the hammer is dropped during the final five to ten blows of driving is recorded in this database field. |
6.97 |
|
Hammer Energy (FT-TONS) |
Developed Hammer Energy (ft-tons): The total developed energy, in units of foot-pounds, imparted by the hammer to the test pile is recorded in this database field. Simply put, the total developed energy is determined by multiplying the hammer (ram) weight with the hammer stroke. |
12.32 |
|
Number of Hammer Blows per Foot of Pile Penetration (BLOWS/FT) |
Average Number of Blows per Foot of Pile Penetration (blows/ft): The average number of blows needed to advance the test pile tip one foot near the end of driving is recorded in this database field. This value is determined from the average penetration of the test pile over the last five to ten blows (i.e., five blows for gravity hammers and 10 blows for steam or diesel hammers) as recorded on the Log of Piling Driven record. |
42.86 |
|
Usable-Dynamic Test |
This yes/no database field receives a checkmark if a checkmark already exists in the Usable-Static Test? database field and if complete driving records and information concerning characteristics of the pile driving equipment are available for the test pile. |
YES |
(skipped) |
Blue Book Capacity (TONS) |
Pile Capacity by Iowa Blue Book Method (Tons): The nominal pile capacity, in tons, predicted by the Iowa Blue Book static analysis method (Dirks and Kam 1989, revised 1994; AbdelSalam et al. 2010) is placed in this field. |
102.5 |
|
SPT Capacity (TONS) |
Pile Capacity by SPT Method (Tons): The nominal pile capacity, in tons, predicted by the SPT-Meyerhof static analysis method (Meyerhof, 1976) is placed in this field. |
44 |
|
Alpha Capacity (TONS) |
Pile Capacity by Alpha-API Method (Tons): The nominal pile capacity, in tons, predicted by the alpha-API (American Petroleum Institute) static analysis method (API, 1984) is placed in this field. |
76.5 |
|
Beta Capacity (TONS) |
Pile Capacity by Beta Method (Tons): The nominal pile capacity, in tons, predicted by the beta static analysis method (Burland, 1973) is placed in this field. |
139.5 |
|
Nordland Capacity (TONS) |
Pile Capacity by Nordlund Method (Tons): The nominal pile capacity, in tons, predicted by the Nordlund static analysis method (Nordlund, 1963) is placed in this field. |
97 |
|
WEAP Capacity (TONS) |
Pile Capacity by WEAP (Tons): The nominal pile capacity, in tons, as predicted by the Wave Equation Analysis Program (Pile Dynamics, Inc., 2005) is placed in this field. |
N/A |
|
WEAP Quake (Shaft) |
Shaft Quake used in WEAP Analysis: The elastic compression limit or quake, in units of inches, for soil located along the shaft of the test pile that was used to determine the WEAP pile capacity is placed in this field. |
N/A |
|
WEAP Quake (Tip) |
Toe Quake used in WEAP Analysis: The elastic compression limit or quake, in units of inches, for soil located at the toe of the test pile that was used to determine the WEAP pile resistance is placed in this field. |
N/A |
|
WEAP Damping (Shaft) |
Shaft Damping Factor used in WEAP Analysis: The damping factor for soil located along the shaft of the test pile that was used to determine the WEAP pile resistance is placed in this field. |
N/A |
|
WEAP Damping (Tip) |
Toe Damping Factor used in WEAP Analysis: The damping factor for soil located at the toe of the test pile that was used to determine the WEAP pile capacity is placed in this field. |
N/A |
|
PDA Capacity (TONS) |
Pile Capacity from PDA (Tons): The nominal pile capacity, in tons, as predicted by PDA (Pile Dynamics, Inc., 1992) is placed in this field. |
N/A |
|
PDA Case Damping |
Case Damping Factor used by PDA: The Case damping factor utilized by PDA to predict the ultimate capacity of the test pile is reported in this field. |
N/A |
|
CAPWAP Capacity (TONS) |
Pile Capacity from CAPWAP (Tons): The nominal pile capacity, in tons, as predicted by the CAse Pile Wave Analysis Program (Pile Dynamics, Inc., 2000) is placed in this field. |
N/A |
|
Smith Damping Factor (Shaft) |
Smith Shaft Damping Factor Calculated by CAPWAP: The damping factor for soil located along the shaft of the test pile that was calculated by CAPWAP in predicting the pile capacity is placed in this field. |
N/A |
|
Smith Damping Factor (Toe) |
Smith Toe Damping Factor Calculated by CAPWAP: The damping factor for soil located at the toe of the test pile that was calculated by CAPWAP in predicting the pile capacity is placed in this field. |
N/A |
|
Quake (Shaft) (INCHES) |
Shaft Quake Calculated by CAPWAP: The elastic compression limit or quake, in units of inches, for soil located along the shaft of the test pile that was calculated by CAPWAP in predicting the pile capacity is placed in this field. |
N/A |
|
Quake (Toe) (INCHES) |
Toe Quake Calculated by CAPWAP: The elastic compression limit or quake, in units of inches, for soil located at the toe of the test pile that was calculated by CAPWAP in predicting the pile capacity is placed in this field. |
N/A |
|
Case Damping Factor (Shaft) |
Case Shaft Damping Factor Calculated by CAPWAP: The Case damping factor for soil located along the shaft of the test pile that was calculated by CAPWAP in predicting the pile capacity is reported in this field. |
N/A |
|
Case Damping Factor (Toe) |
Case Toe Damping Factor Calculated by CAPWAP: The Case damping factor for soil located at the toe of the test pile that was calculated by CAPWAP in predicting the pile capacity is reported in this field. |
N/A |
|
ENR Capacity (TONS) |
Pile Capacity by ENR Formula (Tons): The nominal pile capacity, in tons, as predicted by the Engineering News Record formula (Wellington, 1893) is reported in this field. |
387 |
|
Modified ENR Capacity (TONS) |
Pile Capacity by Iowa DOT Modified ENR Formula (Tons): The nominal pile capacity, in tons, as predicted by the Iowa DOT Modified Engineering News Record formula (Iowa DOT, 2008) is reported in this field. |
153 |
|
Gates Capacity (TONS) |
Pile Capacity by Gates Formula (Tons): The nominal pile capacity, in tons, as predicted by the Gates formula (Gates, 1957) is reported in this field. |
96 |
|
FHWA Modified Gates Capacity (TONS) |
Pile Capacity by FHWA Modified Gates Formula (Tons): The nominal pile capacity, in tons, as predicted by the FHWA Modified Gates formula (AASHTO, 2007) is reported in this field. |
163 |
|
Janbu Capacity (TONS) |
Pile Capacity by Janbu Formula (Tons): The nominal pile capacity, in tons, as predicted by the Janbu formula (Bowles, 1996) is reported in this field. |
122 |
|
PCUBC Capacity (TONS) |
Pile Capacity by Pacific Coast Uniform Building Code Formula (Tons): The nominal pile capacity, in tons, as predicted by the Pacific Coast Uniform Building Code formula (Bowles, 1996) is reported in this field. |
100 |
|
WSDOT Capacity (TONS) |
Pile Capacity by Washington Department of Transportation Formula (Tons): The nominal pile capacity, in tons, as predicted by the Washington State Department of Transportation formula (Allen, 2005) is reported in this field. |
136 |
|
PDA Monitoring |
Was PDA used to monitor the pile during driving or restrike?: This yes/no database field receives a checkmark when the PDA device is used to monitor the installation of the test pile, which must be instrumented with accelerometers and strain transducers near the pile head, and assess its bearing resistance at either the EOD or BOR conditions; otherwise, this database field is left unchecked. |
YES |
(skipped; data will be available if true) |
EOD Date/Time |
EOD Date/Time: In this database field, which has been formatted to accept dated entries of the form: Month/Day/Year Time-of-Day (e.g., 3/8/1984 10:12:55 AM), the date and time at which the EOD condition was achieved is input. |
5/19/2009 12:11:55 |
|
EOD Capacity (KIPS) |
EOD Capacity (kips): The maximum static pile resistance estimate, in units of kips, provided by PDA at the EOD (i.e., RMX). |
195 |
|
1st Restrike Date/Time |
In this database field, which has been formatted to accept dated entries of the form: Month/Day/Year Time-of-Day (e.g., 3/8/1984 10:12:55 AM), the date and time corresponding to the beginning of the first restrike are added. |
5/19/2009 12:19:40 |
|
Capacity After 1st Restrike (KIPS) |
This field represents the maximum static pile resistance estimate, in units of kips, provided by PDA at the beginning of the first restrike (i.e., RMX). |
220 |
|
2nd Restrike Date/Time |
In this database field, which has been formatted to accept dated entries of the form: Month/Day/Year Time-of-Day (e.g., 3/8/1984 10:12:55 AM), the date and time corresponding to the beginning of the second restrike are inserted. |
5/19/2009 12:30:00 |
|
Capacity After 2nd Restrike (KIPS) |
This field represents the maximum static pile resistance estimate, in units of kips, provided by PDA at the beginning of the second restrike (i.e., RMX). |
222 |
|
3rd Restrike Date/Time |
In this database field, which has been formatted to accept dated entries of the form: Month/Day/Year Time-of-Day (e.g., 3/8/1984 10:12:55 AM), the date and time corresponding to the beginning of the third restrike are input. |
5/19/2009 13:20:39 |
|
Capacity After 3rd Restrike (KIPS) |
This field represents the maximum static pile resistance estimate, in units of kips, provided by PDA at the beginning of the third restrike (i.e., RMX). |
243 |
|
4th Restrike Date/Time |
In this database field, which has been formatted to accept dated entries of the form: Month/Day/Year Time-of-Day (e.g., 3/8/1984 10:12:55 AM), the date and time corresponding to the fourth restrike are added. |
5/20/2009 10:13:04 |
|
Capacity After 4th Restrike (KIPS) |
This field represents the maximum static pile resistance estimate, in units of kips, provided by PDA at the beginning of the fourth restrike (i.e., RMX). |
330 |
|
5th Restrike Date/Time |
In this database field, which has been formatted to accept dated entries of the form: Month/Day/Year Time-of-Day (e.g., 3/8/1984 10:12:55 AM), the date and time corresponding to the fifth restrike are inserted. |
5/22/2009 9:52:09 |
|
Capacity After 5th Restrike (KIPS) |
This field represents the maximum static pile resistance estimate, in units of kips, provided by PDA at the beginning of the fifth restrike (i.e., RMX). |
374 |
|
6th Restrike Date/Time |
In this database field, which has been formatted to accept dated entries of the form: Month/Day/Year Time-of-Day (e.g., 3/8/1984 10:12:55 AM), the date and time corresponding to the sixth restrike are input. |
5/27/2009 10:09:46 |
|
Capacity After 6th Restrike (KIPS) |
This field represents the maximum static pile resistance estimate, in units of kips, provided by PDA at the beginning of the sixth restrike (i.e., RMX). |
402 |
|
Pressure Cells |
Were Push-In Pressure Cells used to monitor lateral earth and porewater pressure?: This yes/no database field receives a checkmark if one or more push-in pressure cells were installed near the location of the test pile for acquisition of horizontal stress and porewater pressure data; otherwise, this database field is left unchecked. |
YES |
(skipped; data referenced but not available) |
Number of Pressure Cells Used |
When the database field Were Push-In Pressure Cells used to monitor lateral earth and porewater pressure? is true, the total number of push-in pressure cells installed near the location of the test pile is reported in this text database field. |
2 |
(skipped; data referenced but not available) |
Depths of Pressure Cells |
When the database field Were Push-In Pressure Cells used to monitor lateral earth and porewater pressure? is true, the depths to which each of the push-in pressure cells identified in the database field *Number of Pressure Cells Used were installed are reported in this text database field. |
Cell #1: 23.17 ft; Cell #2: 23.25 ft |
(skipped; data referenced but not available) |
Pressure Cell Data |
Complete Pressure Cell Data: This hyperlink database field allows for the establishment of a direct path to the file(s) holding all data acquired from the installed push-in pressure cells. |
(link to local directory) |
(skipped; data referenced but not available) |
CPT Test |
Was a Cone Penetration Test (CPT) Performed?: This yes/no database field receives a checkmark if one or more CPTs were performed near the location of the test pile; otherwise, this database field is left unchecked. |
YES |
(skipped; data referenced but not available) |
Number of CPT Soundings |
When the database field Was a Cone Penetration Test (CPT) Performed? is true, the total number of soundings performed near the location of the test pile is reported in this text database field. |
3 |
(skipped; data referenced but not available) |
Number of Pore Pressure Dissipation Tests |
When the database field Was a Cone Penetration Test (CPT) Performed? is true, the number of pore pressure dissipation tests conducted in conjunction with each of the CPT soundings identified in the database field Number of CPT Soundings is reported in this text database field. |
1 |
(skipped; data referenced but not available) |
Cone Penetration Test (CPT) Data |
This hyperlink database field allows for the establishment of a direct path to the file(s) holding all data acquired from the various CPTs performed near the location of the test pile. |
(link to local directory) |
(skipped; data referenced but not available) |
BST |
Was a Borehole Shear Test (BST) Performed?: This yes/no database field receives a checkmark if one or more BSTs were performed near the location of the test pile; otherwise, this database field is left unchecked. |
YES |
(skipped; data referenced but not available) |
Number of BSTs |
Number of BSTs Performed: When the database field Was a Borehole Shear Test (BST) Performed? is true, the total number of BSTs performed near the location of the test pile is reported in this text database field. |
1 |
(skipped; data referenced but not available) |
Depths of BSTs |
When the database field Was a Borehole Shear Test (BST) Performed? is true, the depths at which each of the BSTs identified in the database field Number of BSTs Performed were performed are reported in this text database field. |
Test #1: 8.83 ft, 23.83 ft, 35.83 ft |
(skipped; data referenced but not available) |
Borehole Shear Test (BST) Data |
This hyperlink database field allows for the establishment of a direct path to the file(s) holding all data acquired from the various BSTs performed near the location of the test pile. |
(link to local directory) |
(skipped; data referenced but not available) |
Original Attribute |
Description |
Sample Record |
New Attribute |
|---|---|---|---|
ID |
Unique identifier for the table. |
[1923, 1924, …] |
|
Record ID |
Field that references the project ID. |
[269, 269, …] |
referenced through |
Soil Layer |
Soil layer index. |
[1, 2, …] |
|
Material Description |
Description of soil conditions. |
[Clay, Silty Clay to Clay, …] |
|
Thickness (FEET) |
Layer thickness, in feet. |
[25, 4, …] |
|
NAVG (BLOWS/FT) |
Average SPT blow count. |
[12, N/A, …] |
|
Unit Friction (KIPS/FT) |
Nominal unit skin friction value specified by the design chart found in the Iowa LRFD Bridge Design Manual (Iowa DOT, 2010) for each soil layer. |
[1.2, 1.2, …] |
|
Total Friction (KIPS/FT) |
Total soil layer nominal skin friction value resulting from the multiplication of the soil layer thickness by the nominal unit skin friction value. |
[30, 4.8, …] |
|
Original Attribute |
Description |
Sample Record |
New Attribute |
|---|---|---|---|
ID |
Unique identifier for the table. |
[5582, 5583, …] |
|
Record ID |
Field that references the project ID. |
[269, 269, …] |
referenced through |
Borehole Number |
[ISU5, …] |
|
|
Soil Layer |
Soil layer index. |
[1, 2, …] |
|
Description |
Description of soil conditions. |
[Dark Brown SLC, Gray-Olive SLC, …] |
|
Depth (FEET) |
Layer thickness, in feet. |
[2, 8, …] |
|
Average SPT Value (BLOWS/FT) |
Average SPT blow count. |
[N/A, 6, …] |
|
Original Attribute |
Description |
Sample Record |
New Attribute |
|---|---|---|---|
ID |
Unique identifier for the table. |
[8657, 8658, 8659, 8660, 8661, 8662, 8663, 8664, 8665, 8666, …] |
|
Record ID |
Field that references the project ID. |
[269, 269, …] |
referenced through |
Load (TONS) |
[0, 6.82, 14.41, 21.43, 29.05, 35.95, 44.8, 51.23, 59.08, 66.66, …] |
|
|
Gauge Reading (INCHES) |
[0, 0.008, 0.02, 0.03, 0.05, 0.07, 0.09, 0.11, 0.14, 0.16, …] |
|
FHWA DFLTD v.2 Tables and Attributes¶
Note
All information in this section comes from Petek et al., 2016 and Shannon & Wilson, 2015.
Hint
The units based on which values were stored in relevant columns had to be determined from stored data, there was no mention in existing documentation.
Project Table¶
- Name:
tbl_Project- Description:
Project descriptive data, e.g. project name, data provider, consultant etc.
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
|
|
txt_SourceDb |
nvarchar(15) |
YES |
|
|
txt_ProjectName |
nvarchar(255) |
YES |
|
|
txt_Address |
nvarchar(255) |
YES |
|
|
txt_City |
nvarchar(255) |
YES |
|
|
txt_County |
nvarchar(55) |
YES |
|
|
txt_StateCode |
nvarchar(2) |
YES |
|
|
txt_CountryCode |
nvarchar(5) |
YES |
|
|
txt_USCSPredominant |
nvarchar(25) |
YES |
||
txt_ASTMPredominant |
nvarchar(25) |
YES |
(empty) |
|
txt_ASTMLegacy |
nvarchar(80) |
YES |
||
dbl_Latitude |
float |
YES |
|
|
dbl_Longitude |
float |
YES |
|
|
txt_VerticalDatumCode |
nvarchar(25) |
YES |
(mostly empty) |
|
txt_HorizontalDatumCode |
nvarchar(25) |
YES |
(empty) |
|
txt_GeologicProvinceCode |
nvarchar(25) |
YES |
||
txt_GeologicUnit |
nvarchar(255) |
YES |
||
txt_GeneralSoilDescription |
nvarchar(50) |
YES |
|
|
txt_ProjectID |
nvarchar(100) |
YES |
|
|
txt_Title |
nvarchar(100) |
YES |
|
|
mem_Remarks |
nvarchar(-1) |
YES |
|
|
txt_Owner |
nvarchar(255) |
YES |
(empty) |
|
txt_DataSourceCompanyAgency |
nvarchar(255) |
YES |
||
txt_DataSourceFirstname |
nvarchar(50) |
YES |
||
txt_DataSourceLastname |
nvarchar(50) |
YES |
||
txt_DataSourcePhone |
nvarchar(20) |
YES |
||
txt_DataSourceEmail |
nvarchar(255) |
YES |
||
txt_PrimeConsultant |
nvarchar(50) |
YES |
||
txt_GeotechnicalConsultant |
nvarchar(50) |
YES |
||
txt_GeneralContractor |
nvarchar(50) |
YES |
|
|
txt_Publication |
nvarchar(-1) |
YES |
|
|
txt_CreatedBy |
nvarchar(20) |
YES |
(unusable) |
|
dte_AddDate |
datetime2 |
YES |
|
|
txt_ModifiedBy |
nvarchar(20) |
YES |
(unusable) |
|
dte_ModifiedDate |
datetime2 |
YES |
|
Exploration Tables¶
- Name:
tbl_Exploration- Description:
Exploration general descriptive data, e.g. exploration type, location, date, predominant soil unit, etc.

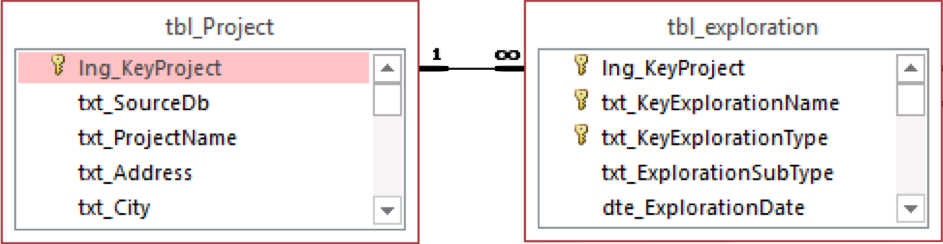

Fig. 9 Appendix: DFLTD v.2 tbl_Exploration Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
|
|
txt_KeyExplorationType (PK) |
nvarchar(12) |
NO |
||
txt_ExplorationSubType |
nvarchar(255) |
YES |
||
dte_ExplorationDate |
datetime2 |
YES |
(LDOEP only) |
|
txt_ExplorationHammerTypeCode |
nvarchar(10) |
YES |
(LDOEP only and mostly unknown) |
|
dbl_HammerEfficiency |
float |
YES |
% |
(mostly empty) |
dbl_ConeDiameter |
float |
YES |
mm |
(mostly empty) |
dbl_ConeAngle |
float |
YES |
deg |
|
dbl_ConeBaseArea |
float |
YES |
mm2 |
(empty) |
dbl_RodDiameter |
float |
YES |
mm |
(empty) |
txt_ConeType |
nvarchar(255) |
YES |
||
dbl_CPTRatioa |
float |
YES |
n/a |
(empty) |
dbl_CPTRatiob |
float |
YES |
n/a |
(empty) |
txt_PMTInstallMethodCode |
nvarchar(255) |
YES |
(empty) |
|
txt_PMTDeviceTypeCode |
nvarchar(5) |
YES |
(empty) |
|
mem_Remarks |
nvarchar(255) |
YES |
|
|
dbl_DepthToWaterStatic |
float |
YES |
mm |
|
dbl_MeasuringDepthWaterStatic |
float |
YES |
mm |
(empty) |
dbl_DepthToWaterArtesian |
float |
YES |
mm |
(empty) |
dbl_ArtesianMeasuringDepth |
float |
YES |
mm |
(empty) |
txt_FreshOrSaltWater |
nvarchar(25) |
YES |
(LDOEP only) |
|
dbl_GroundElevation |
float |
YES |
mm |
|
dbl_Easting |
float |
YES |
mm |
|
dbl_Northing |
float |
YES |
mm |
|
dbl_Latitude |
float |
YES |
deg |
|
dbl_Longitude |
float |
YES |
deg |
|
dbl_Station |
float |
YES |
mm |
|
dbl_Offset |
float |
YES |
mm |
|
txt_USCSCodePredominant |
nvarchar(255) |
YES |
|
|
txt_ASTMCodePredominant |
nvarchar(255) |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_ExplorationBoring- Description:
Soil or rock boring data by depth, e.g. blow counts, USCS designation, etc.

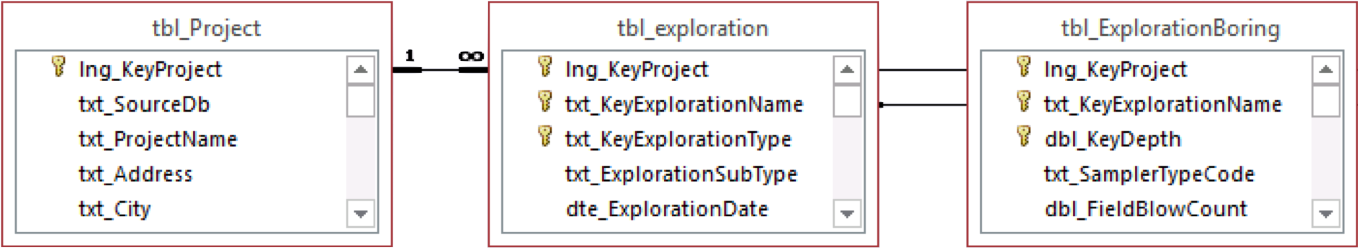

Fig. 10 Appendix: DFLTD v.2 tbl_ExplorationBoring Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
||
dbl_KeyDepth (PK) |
float |
NO |
mm |
|
txt_SamplerTypeCode |
nvarchar(12) |
YES |
||
dbl_FieldBlowCount |
float |
YES |
bl/ft |
|
dbl_BlowIncrement |
float |
YES |
mm |
|
dbl_BlowEquivalent |
int |
YES |
n/a |
|
dbl_RQD |
float |
YES |
% |
(mostly empty) |
txt_USCSCodeLegacy |
nvarchar(6) |
YES |
||
txt_ASTMCodeLegacy |
nvarchar(20) |
YES |
||
txt_GeologicUnitCodeLegacy |
nvarchar(20) |
YES |
(empty) |
|
dbl_SptPhiLegacy |
float |
YES |
deg |
(mostly empty) |
dbl_SptCohesLegacy |
float |
YES |
Pa |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_ExplorationPressuremeter- Description:
Pressuremeter data by depth, measurements, and interpreted results.

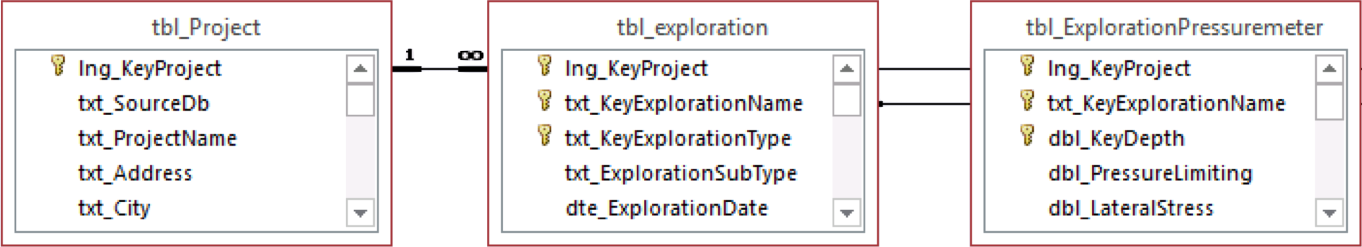

Fig. 11 Appendix: DFLTD v.2 tbl_ExplorationPressuremeter Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
||
dbl_KeyDepth (PK) |
float |
NO |
mm |
|
dbl_PressureLimiting |
float |
YES |
Pa |
|
dbl_LateralStress |
float |
YES |
Pa |
|
dbl_K0 |
float |
YES |
n/a |
|
dbl_InitialModulus |
float |
YES |
Pa |
|
dbl_ReloadModulus |
float |
YES |
Pa |
|
dbl_ShearModulus |
float |
YES |
Pa |
|
dbl_UndrainedShearStrength |
float |
YES |
Pa |
|
dbl_FrictionAngle |
float |
YES |
deg |
|
dbl_DilationAngle |
float |
YES |
deg |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_ExplorationVaneField- Description:
Field vane shear test data by depth, measurements, and interpreted results.

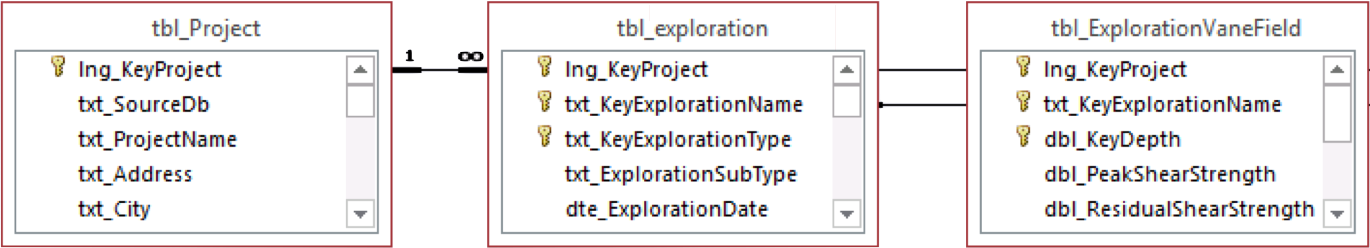

Fig. 12 Appendix: DFLTD v.2 tbl_ExplorationVaneField Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
||
dbl_KeyDepth (PK) |
float |
NO |
mm |
|
dbl_PeakShearStrength |
float |
YES |
Pa |
|
dbl_ResidualShearStrength |
float |
YES |
Pa |
|
dbl_RemoldedShearStrength |
float |
YES |
Pa |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_ExplorationVaneStepBlade- Description:
Step blade vane shear test data by depth, measurements, and interpreted results.

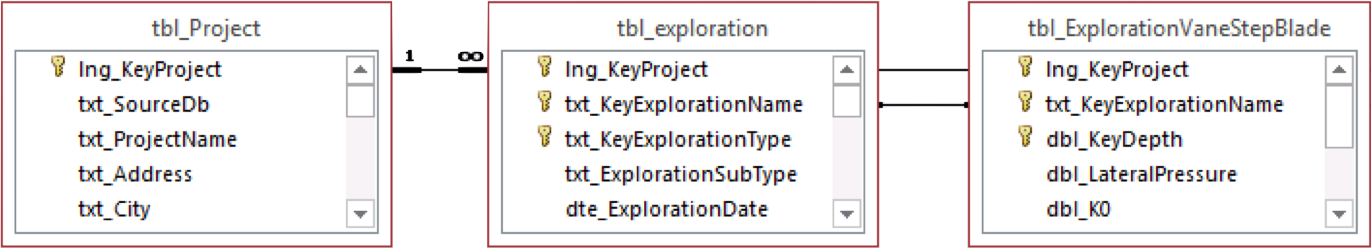

Fig. 13 Appendix: DFLTD v.2 tbl_ExplorationVaneStepBlade Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
||
dbl_KeyDepth (PK) |
float |
NO |
mm |
|
dbl_LateralPressure |
float |
YES |
Pa |
|
dbl_K0 |
float |
YES |
n/a |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
Warning
Table tbl_ExplorationGroundwaterMonitoring is empty.
- Name:
tbl_ExplorationGroundwaterMonitoring- Description:
Groundwater measurements from a monitoring well or VWP, including date-time, depth to water.

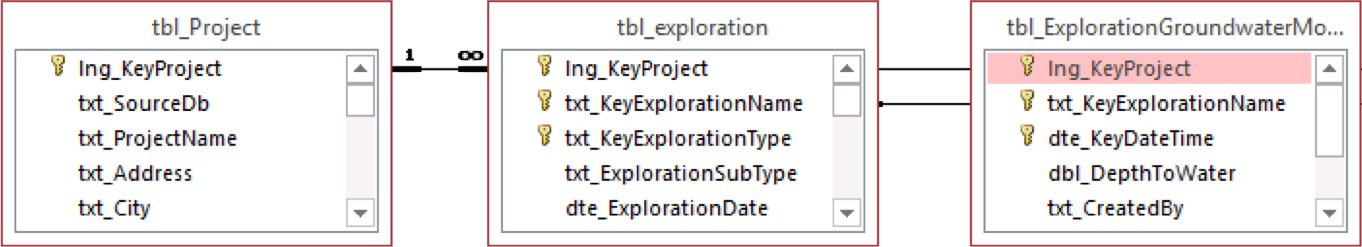

Fig. 14 Appendix: DFLTD v.2 tbl_ExplorationGroundwaterMonitoring Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
||
dte_KeyDateTime (PK) |
datetime2 |
NO |
||
dbl_DepthToWater |
float |
YES |
mm |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
Warning
Table tbl_ExplorationDynamicMeasurements is empty.
- Name:
tbl_ExplorationDynamicMeasurements- Description:
Shear and compression wave velocity data by depth, measurements and interpreted results.

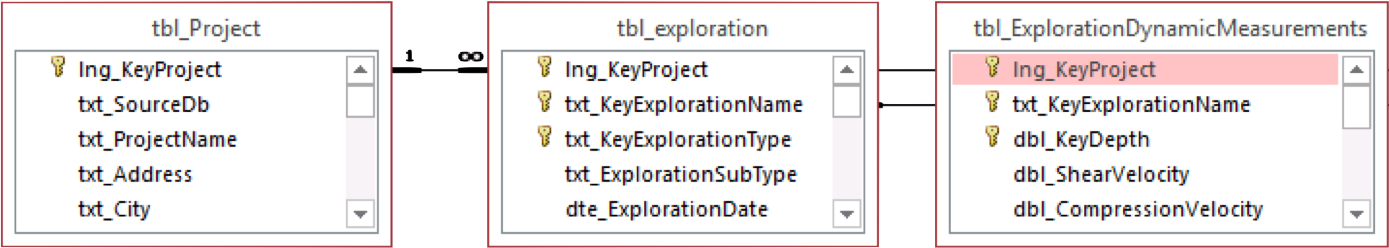

Fig. 15 Appendix: DFLTD v.2 tbl_ExplorationDynamicMeasurements Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
||
dbl_KeyDepth (PK) |
float |
NO |
mm |
|
dbl_ShearVelocity |
float |
YES |
?? |
|
dbl_CompressionVelocity |
float |
YES |
?? |
|
dbl_ShearModulus |
float |
YES |
?? |
|
dbl_BulkModulus |
float |
YES |
?? |
|
dbl_YoungsModulus |
float |
YES |
?? |
|
dbl_PoissonsRatio |
float |
YES |
?? |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_ExplorationLabResults- Description:
Laboratory test results by depth.

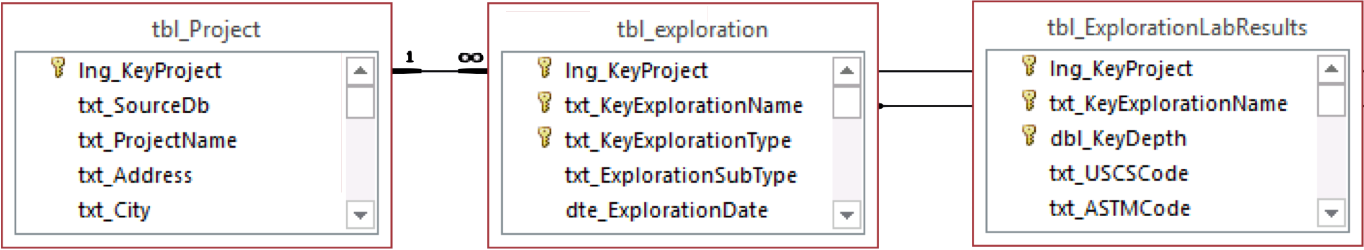

Fig. 16 Appendix: DFLTD v.2 tbl_ExplorationLabResults Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
||
dbl_KeyDepth (PK) |
float |
NO |
mm |
|
txt_USCSCode |
nvarchar(18) |
YES |
||
txt_ASTMCode |
nvarchar(18) |
YES |
||
dbl_MoistureContent |
float |
YES |
% |
|
dbl_TotalUnitWeight |
float |
YES |
kg/m3 |
|
dbl_DryDensity |
float |
YES |
kg/m3 |
(mostly empty) |
dbl_RelativeDensity |
float |
YES |
% |
(empty) |
dbl_UnitWeightMax |
float |
YES |
kg/m3 |
(mostly empty) |
dbl_UnitWeightMin |
float |
YES |
kg/m3 |
(mostly empty) |
dbl_LiquidLimit |
float |
YES |
% |
|
dbl_PlasticLimit |
float |
YES |
% |
|
dbl_PlasticityIndex |
float |
YES |
% |
|
dbl_D10 |
float |
YES |
mm |
(mostly empty) |
dbl_D30 |
float |
YES |
mm |
(mostly empty) |
dbl_D60 |
float |
YES |
mm |
(mostly empty) |
dbl_PercentGravel |
float |
YES |
% |
(mostly empty) |
dbl_PercentSand |
float |
YES |
% |
(mostly empty) |
dbl_PercentFines |
float |
YES |
% |
|
dbl_percentClayFraction |
float |
YES |
% |
|
dbl_Permeability |
float |
YES |
m/s |
(empty) |
dbl_Saturation |
float |
YES |
% |
(empty) |
dbl_CompressionIndex |
float |
YES |
n/a |
(mostly empty) |
dbl_ReCompressionIndex |
float |
YES |
n/a |
(mostly empty) |
dbl_VoidRatio |
float |
YES |
n/a |
(empty) |
dbl_CoefficientOfConsolidation |
float |
YES |
?? |
(empty) |
dbl_CoeffficientOfCompression |
float |
YES |
?? |
(empty) |
dbl_T90 |
float |
YES |
min |
(empty) |
dbl_PreconsolidationPressure |
float |
YES |
Pa |
(empty) |
dbl_OCR |
float |
YES |
n/a |
|
txt_ShearTestCode |
nvarchar(6) |
YES |
||
dbl_Cohesion |
float |
YES |
Pa |
|
dbl_Phi |
float |
YES |
deg |
(mostly empty) |
dbl_EffectCohesion |
float |
YES |
Pa |
(mostly empty) |
dbl_EffectPhi |
float |
YES |
deg |
(mostly empty) |
dbl_ShearStrLegacy |
float |
YES |
Pa |
|
dbl_ModulusLegacy |
float |
YES |
Pa |
|
txt_TypeModLegacy |
nvarchar(20) |
YES |
(mostly empty) |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_ExplorationSoilLayerBoring- Description:
Interpreted soil layering at exploration location.
Fig. 17 Appendix: DFLTD v.2 tbl_ExplorationSoilLayerBoring Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
||
dbl_KeyDepthToBottom (PK) |
float |
NO |
|
|
txt_USCSCode |
nvarchar(20) |
YES |
|
|
txt_ASTMCode |
nvarchar(20) |
YES |
||
txt_PrimarySoilDescriptionCode |
nvarchar(5) |
YES |
|
|
txt_SecondarySoilDescriptionCode |
nvarchar(5) |
YES |
||
txt_PlasticityDescriptionCode |
nvarchar(5) |
YES |
(mostly empty) |
|
txt_LayerDescription |
nvarchar(255) |
YES |
|
|
txt_GeologicUnit |
nvarchar(255) |
YES |
(mostly empty) |
|
dbl_BlowCountInterpreted |
float |
YES |
|
|
dbl_BlowIncrement |
float |
YES |
||
dbl_CohesionInterpreted |
float |
YES |
Pa |
|
dbl_FrictionAngleInterpreted |
float |
YES |
deg |
|
dbl_CptqcInterpreted |
float |
YES |
(empty) |
|
dbl_CptfsInterpreted |
float |
YES |
(empty) |
|
dbl_UnitWeightInterpreted |
float |
YES |
kg/m3 |
|
dbl_ShearVelocityInterpreted |
float |
YES |
(mostly empty) |
|
dbl_YoungsModulusInterpreted |
float |
YES |
(mostly empty) |
|
dbl_ShearModulusInterpreted |
float |
YES |
(empty) |
|
dbl_KoInterpreted |
float |
YES |
(empty) |
|
dbl_OCRInterpreted |
float |
YES |
(empty) |
|
dbl_WaterContentInterpreted |
float |
YES |
(mostly empty) |
|
dbl_LLInterpreted |
float |
YES |
(mostly empty) |
|
dbl_PLInterpreted |
float |
YES |
(mostly empty) |
|
dbl_PIInterpreted |
float |
YES |
(mostly empty) |
|
dbl_RQDInterpreted |
nvarchar(20) |
YES |
(mostly empty) |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
Warning
Table tbl_ExplorationSoilLayerCPT is missing description and in MS Access.
- Name:
tbl_ExplorationSoilLayerCPT- Description:
Interpreted soil layering at exploration location.
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
||
dbl_KeyDepthToBottom (PK) |
float |
NO |
||
txt_USCSCode |
nvarchar(6) |
YES |
||
txt_ASTMCode |
nvarchar(20) |
YES |
||
txt_PrimarySoilDescriptionCode |
nvarchar(5) |
YES |
||
txt_SecondarySoilDescriptionCode |
nvarchar(5) |
YES |
||
txt_PlasticityDescriptionCode |
nvarchar(5) |
YES |
||
txt_LayerDescription |
nvarchar(255) |
YES |
||
txt_GeologicUnit |
nvarchar(255) |
YES |
||
dbl_BlowCountInterpreted |
float |
YES |
||
dbl_BlowIncrement |
float |
YES |
||
dbl_CohesionInterpreted |
float |
YES |
||
dbl_FrictionAngleInterpreted |
float |
YES |
||
dbl_CptqcInterpreted |
float |
YES |
||
dbl_CptfsInterpreted |
float |
YES |
||
dbl_UnitWeightInterpreted |
float |
YES |
||
dbl_ShearVelocityInterpreted |
float |
YES |
||
dbl_YoungsModulusInterpreted |
float |
YES |
||
dbl_ShearModulusInterpreted |
float |
YES |
||
dbl_KoInterpreted |
float |
YES |
||
dbl_OCRInterpreted |
float |
YES |
||
dbl_WaterContentInterpreted |
float |
YES |
||
dbl_LLInterpreted |
float |
YES |
||
dbl_PLInterpreted |
float |
YES |
||
dbl_PIInterpreted |
float |
YES |
||
dbl_RQDInterpreted |
nvarchar(20) |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_ExplorationCPT- Description:
Cone penetrometer data by depth, e.g. measured tip resistance, interpreted soil behavior type, etc.

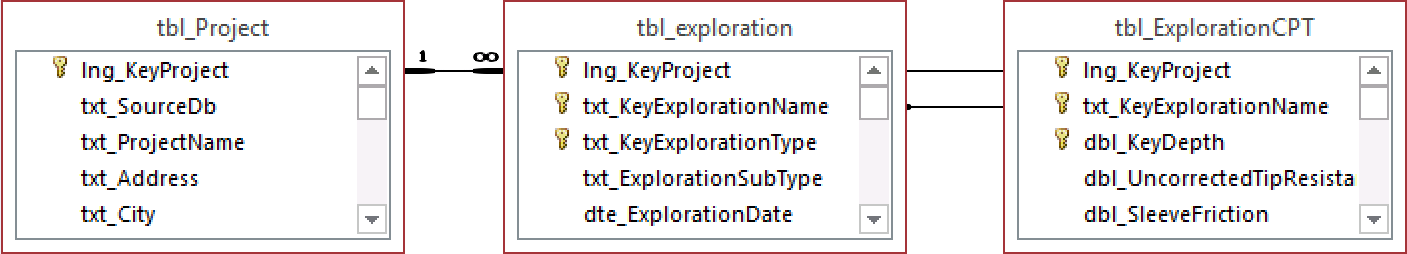

Fig. 18 Appendix: DFLTD v.2 tbl_ExplorationCPT Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
||
dbl_KeyDepth (PK) |
float |
NO |
||
dbl_UncorrectedTipResistance |
float |
YES |
||
dbl_SleeveFriction |
float |
YES |
||
dbl_MeasuredPorePressure |
float |
YES |
||
dbl_RFFrictionRatio |
float |
YES |
||
dbl_qtCorrectedConeTipResistance |
float |
YES |
||
dbl_uSteadyStatePorePressure |
float |
YES |
||
dbl_QtNormalizedConeTipResistance |
float |
YES |
||
dbl_FrNormalizedFrictionRatio |
float |
YES |
||
dbl_BqPorePressureParameterRatio |
float |
YES |
||
dbl_IcSoilBehaviorIndex |
float |
YES |
||
dbl_SBTSoilBehaviorType |
float |
YES |
||
dbl_OCR |
float |
YES |
||
dbl_FrictionAngle |
float |
YES |
||
dbl_UndrainedShearStrength |
float |
YES |
||
lng_EquivalentSPTBlowCount |
int |
YES |
||
txt_USCSCodeLegacy |
nvarchar(6) |
YES |
||
txt_ASTMCodeLegacy |
nvarchar(20) |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_ExplorationDilatometer- Description:
Dilatometer data by depth, measurements and interpreted results.

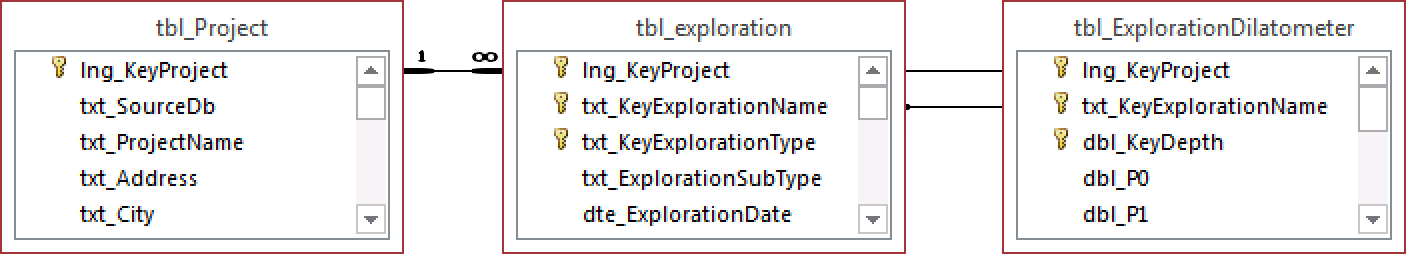

Fig. 19 Appendix: DFLTD v.2 tbl_ExplorationDilatometer Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
||
dbl_KeyDepth (PK) |
float |
NO |
||
dbl_P0 |
float |
YES |
||
dbl_P1 |
float |
YES |
||
dbl_P2 |
float |
YES |
||
dbl_IdMaterialIndex |
float |
YES |
||
dbl_KdHorizStressIndex |
float |
YES |
||
dbl_EdDilatometerModulus |
float |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
Deep Foundation Tables¶
- Name:
tbl_DeepFoundation- Description:
Deep foundation general descriptive data, e.g. type, length, location, etc.

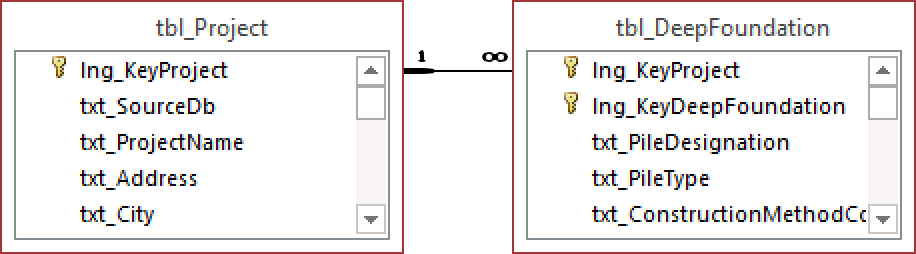

Fig. 20 Appendix: DFLTD v.2 tbl_DeepFoundation Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
txt_PileDesignation |
nvarchar(255) |
YES |
|
|
txt_PileType |
nvarchar(255) |
YES |
|
|
txt_ConstructionMethodCode |
nvarchar(255) |
YES |
|
|
txt_StructureNumber |
nvarchar(255) |
YES |
|
|
txt_PierGroupNumber |
nvarchar(255) |
YES |
|
|
txt_SacrificialOrProductionPile |
nvarchar(255) |
YES |
(LDOEP only) |
|
lng_NumberOfSections |
int |
YES |
(all values = 1; a few = 2) |
|
txt_GeometryCode |
nvarchar(255) |
YES |
|
|
txt_TipTreatmentCode |
nvarchar(255) |
YES |
||
dbl_GroundElevation |
float |
YES |
||
dbl_DepthToWater |
float |
YES |
(LDOEP only) |
|
txt_SoilTypeGen |
nvarchar(50) |
YES |
(LDOEP only) |
|
txt_SoilTypeSide |
nvarchar(50) |
YES |
(LDOEP only) |
|
txt_SoilTypeTip |
nvarchar(50) |
YES |
(LDOEP only) |
|
dbl_TopElevation |
float |
YES |
mm |
|
dbl_TipElevation |
float |
YES |
mm |
|
dbl_TotalLength |
float |
YES |
mm |
|
dbl_EmbeddedLength |
float |
YES |
mm |
|
dbl_PermanentCasedLength |
float |
YES |
(empty) |
|
dbl_PermanentCasingBottomElevation |
float |
YES |
(empty) |
|
dbl_DistanceToReactionPile1 |
float |
YES |
(mostly empty) |
|
dbl_DistanceToReactionPile2 |
float |
YES |
(mostly empty) |
|
dbl_DistanceToReactionPile3 |
float |
YES |
(mostly empty) |
|
dbl_DistanceToReactionPile4 |
float |
YES |
(mostly empty) |
|
dbl_BatterAngle |
float |
YES |
(mostly empty; all other values zero) |
|
dte_InstallStartDate |
datetime2 |
YES |
(empty) |
|
dte_InstallEndDate |
datetime2 |
YES |
(empty) |
|
txt_InstallationSubcontractor |
nvarchar(255) |
YES |
(empty) |
|
dbl_Easting |
float |
YES |
(mostly empty) |
|
dbl_Northing |
float |
YES |
(mostly empty) |
|
dbl_Station |
float |
YES |
(empty) |
|
dbl_Offset |
float |
YES |
(mostly empty) |
|
dbl_Latitude |
float |
YES |
(mostly empty) |
|
dbl_Longitude |
float |
YES |
(mostly empty) |
|
txt_Remarks |
nvarchar(-1) |
YES |
(mostly empty) |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_DeepFoundationDistToExploration- Description:
Distance from deep foundation element to each site exploration.

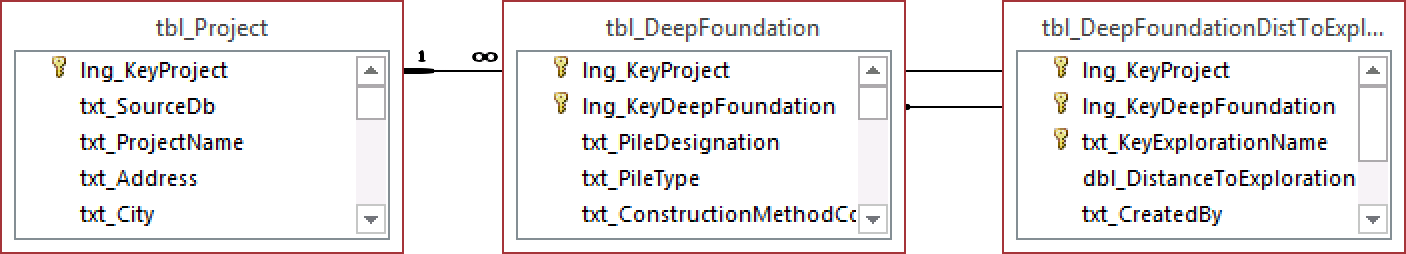

Fig. 21 Appendix: DFLTD v.2 tbl_DeepFoundationDistToExploration Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
txt_KeyExplorationName (PK) |
nvarchar(25) |
NO |
||
dbl_DistanceToExploration |
float |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_DeepFoundationSoilLayer- Description:
Interpreted soil layering at deep foundation location.
Fig. 22 Appendix: DFLTD v.2 tbl_DeepFoundationSoilLayer Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_KeyDepthToBottom (PK) |
float |
NO |
||
dbl_DepthToWater |
float |
YES |
||
txt_USCSCodeInterpreted |
nvarchar(6) |
YES |
||
txt_ASTMCodeInterpreted |
nvarchar(20) |
YES |
||
txt_PrimarySoilDescriptionCode |
nvarchar(5) |
YES |
||
txt_SecondarySoilDescriptionCode |
nvarchar(5) |
YES |
||
txt_PlasticityDescriptionCode |
nvarchar(5) |
YES |
||
mem_LayerDescription |
nvarchar(255) |
YES |
||
txt_GeologicUnit |
nvarchar(255) |
YES |
||
dbl_BlowCountInterpreted |
float |
YES |
||
dbl_BlowIncrement |
float |
YES |
||
dbl_CohesionInterpreted |
float |
YES |
||
dbl_FrictionAngleInterpreted |
float |
YES |
||
dbl_CptqcInterpreted |
float |
YES |
||
dbl_CptfsInterpreted |
float |
YES |
||
dbl_UnitWeightInterpreted |
float |
YES |
||
dbl_ShearVelocityInterpreted |
float |
YES |
||
dbl_YoungsModulusInterpreted |
float |
YES |
||
dbl_ShearModulusInterpreted |
float |
YES |
||
dbl_KoInterpreted |
float |
YES |
||
dbl_OCRInterpreted |
float |
YES |
||
dbl_WaterContentInterpreted |
float |
YES |
||
dbl_LLInterpreted |
float |
YES |
||
dbl_PLInterpreted |
float |
YES |
||
dbl_PIInterpreted |
float |
YES |
||
dbl_RQDInterpreted |
float |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_DescriptionAugerCast- Description:
Auger cast pile descriptive data, e.g. diameter, reinforcement, etc.

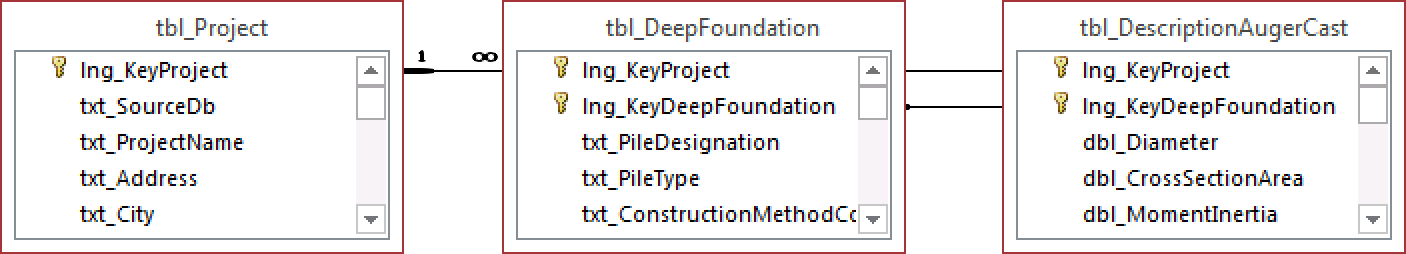

Fig. 23 Appendix: DFLTD v.2 tbl_DescriptionAugerCast Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_Diameter |
float |
YES |
mm |
|
dbl_CrossSectionArea |
float |
YES |
(empty) |
|
dbl_MomentInertia |
float |
YES |
(empty) |
|
dbl_ConcreteStrength |
float |
YES |
(empty) |
|
dbl_ConcreteModulus |
float |
YES |
(empty) |
|
dbl_WeightPerUnitLength |
float |
YES |
(empty) |
|
txt_ReinforcementCode |
nvarchar(25) |
YES |
(empty) |
|
dbl_ReinforcementTotalXArea |
float |
YES |
(empty) |
|
dbl_ReinforcementYieldStrength |
float |
YES |
(empty) |
|
dbl_ReinforcementModulus |
float |
YES |
(empty) |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_DescriptionCylinderConcrete- Description:
Concrete cylinder pile descriptive data, e.g. diameter, prestress pressure, etc.
Fig. 24 Appendix: DFLTD v.2 tbl_DescriptionCylinderConcrete Table Relationships¶
Note
Properties for pile types “CC”, “RC”, “SC”
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_OuterDiameter |
float |
YES |
mm |
|
dbl_InnerDiameter |
float |
YES |
mm |
(skipped; rely on thickness) |
dbl_WallThickness |
float |
YES |
mm |
|
dbl_CrossSectionArea |
float |
YES |
?? |
(skipped; erroneous data) |
dbl_MomentInertia |
float |
YES |
(empty or erroneous) |
|
dbl_WeightPerUnitLength |
float |
YES |
kg/m |
|
dbl_CompositeModulus |
float |
YES |
Pa |
|
dbl_ConcreteStrength |
float |
YES |
Pa |
|
dbl_PrestressPressure |
float |
YES |
||
dbl_PostTensionStress |
float |
YES |
||
txt_PrestressYN |
nvarchar(1) |
YES |
||
txt_PostTensionYN |
nvarchar(1) |
YES |
||
txt_ReinforcementYN |
nvarchar(1) |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_DescriptionDrilledShaft- Description:
Drilled shaft descriptive data, e.g. diameter, casing length, etc.

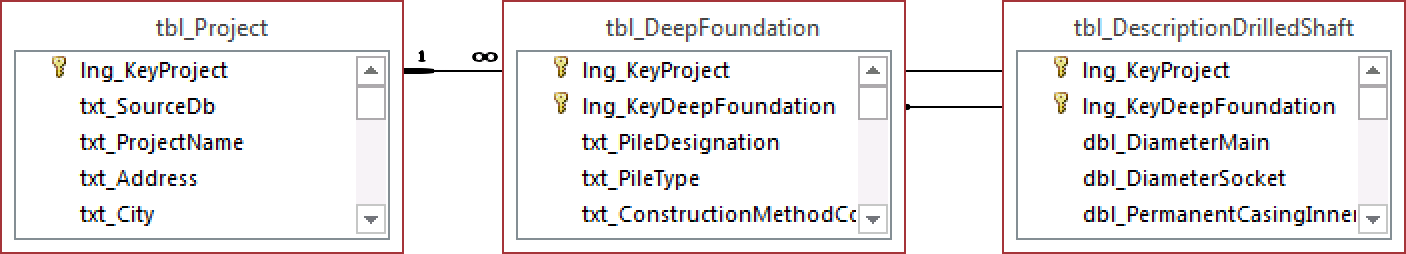

Fig. 25 Appendix: DFLTD v.2 tbl_DescriptionDrilledShaft Table Relationships¶
Note
Properties for pile types “MI”, “BC”, “AC”, “FC”, “SP”
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_DiameterMain |
float |
YES |
mm |
|
dbl_DiameterSocket |
float |
YES |
mm |
(mostly empty) |
dbl_PermanentCasingInnerDiameter |
float |
YES |
mm |
(empty) |
dbl_PermanentCasingThickness |
float |
YES |
mm |
(empty) |
dbl_PermanentCasingOuterDiameter |
float |
YES |
mm |
(empty) |
dbl_CrossSectionArea |
float |
YES |
mm2 |
|
dbl_MomentInertia |
float |
YES |
||
dbl_ConcreteStrength |
float |
YES |
Pa |
(empty) |
dbl_ConcreteModulus |
float |
YES |
Pa |
|
dbl_WeightPerUnitLength |
float |
YES |
(empty) |
|
txt_ReinforcementCode |
nvarchar(25) |
YES |
(empty) |
|
dbl_ReinforcementTotalXArea |
float |
YES |
(empty) |
|
dbl_ReinforcementPctXArea |
float |
YES |
(empty) |
|
dbl_ReinforcementYieldStrength |
float |
YES |
(empty) |
|
dbl_ReinforcementModulus |
float |
YES |
(empty) |
|
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
- Name:
tbl_DescriptionHPile- Description:
H pile descriptive data, e.g. area, flange width, etc.

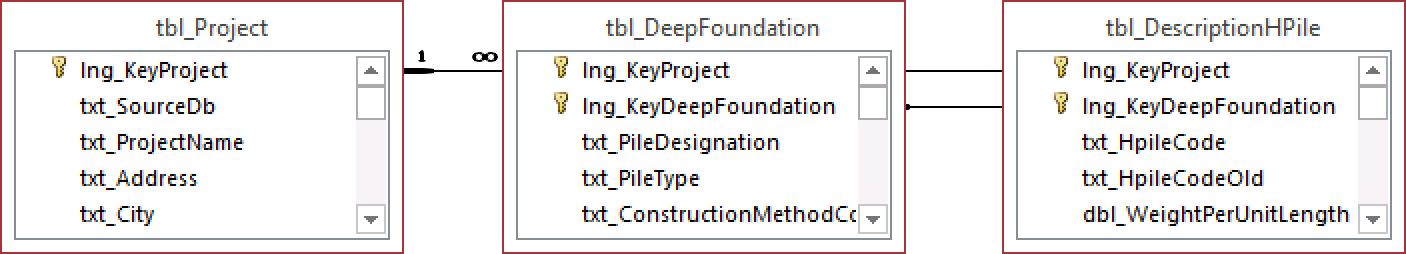

Fig. 26 Appendix: DFLTD v.2 tbl_DescriptionHPile Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
txt_HpileCode |
nvarchar(10) |
YES |
|
|
txt_HpileCodeOld |
nvarchar(10) |
YES |
||
dbl_WeightPerUnitLength |
float |
YES |
kg/m |
|
dbl_CrossSectionArea |
float |
YES |
mm2 |
|
dbl_DepthSection |
float |
YES |
mm |
used for |
dbl_FlangeWidth |
float |
YES |
mm |
|
dbl_FlangeDepth |
float |
YES |
mm |
|
dbl_WebThickness |
float |
YES |
mm |
|
dbl_CoatingArea |
float |
YES |
mm2/mm |
|
dbl_MomentInertiaXX |
float |
YES |
||
dbl_MomentInertiaYY |
float |
YES |
||
dbl_SteelModulus |
float |
YES |
Pa |
|
dbl_SteelYieldStrength |
float |
YES |
(empty) |
|
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
- Name:
tbl_DescriptionMonotube- Description:
Monotube pile descriptive data, e.g. diameter (butt and tip), gauge, etc.
Fig. 27 Appendix: DFLTD v.2 tbl_DescriptionMonotube Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_TopDiameter |
float |
YES |
mm |
|
dbl_TipDiameter |
float |
YES |
mm |
(inconsistent; toe > head) |
dbl_Gauge |
float |
YES |
mm |
|
dbl_TaperAngle |
float |
YES |
(empty) |
|
dbl_Modulus |
float |
YES |
(empty) |
|
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
- Name:
tbl_DescriptionPolyconcrete- Description:
Concrete pile (square, octagonal) descriptive data, e.g. number of sides, side length, etc.

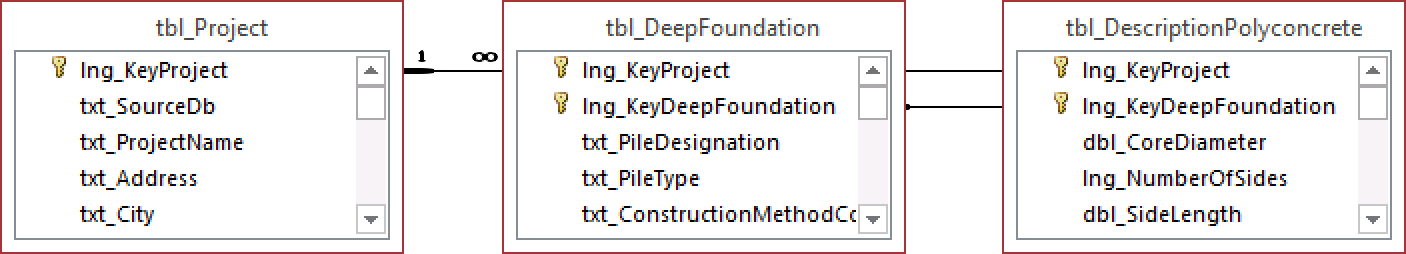

Fig. 28 Appendix: DFLTD v.2 tbl_DescriptionPolyconcrete Table Relationships¶
Note
Properties for pile types “OC”, “SC”
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_CoreDiameter |
float |
YES |
||
lng_NumberOfSides |
int |
YES |
||
dbl_SideLength |
float |
YES |
mm |
|
dbl_EquivalentDiameter |
float |
YES |
mm |
|
dbl_Perimeter |
float |
YES |
mm |
|
dbl_CrossSectionArea |
float |
YES |
mm2 |
|
dbl_MomentInertia |
float |
YES |
||
dbl_WeightPerUnitLength |
float |
YES |
kg/m |
|
dbl_ConcreteModulus |
float |
YES |
Pa |
|
dbl_ConcreteStrength |
float |
YES |
(empty) |
|
dbl_PrestressPressure |
float |
YES |
(empty) |
|
txt_PrestressLegacy |
nvarchar(1) |
YES |
||
txt_ReinforceLegacy |
nvarchar(18) |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_DescriptionSteelPipe- Description:
Steel pipe pile descriptive data, e.g. wall thickness, concrete filled (Y/N), etc.

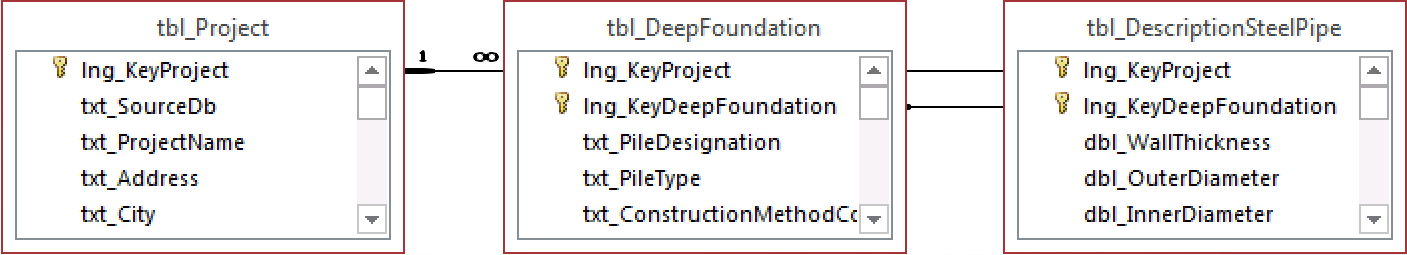

Fig. 29 Appendix: DFLTD v.2 tbl_DescriptionSteelPipe Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_WallThickness |
float |
YES |
mm |
|
dbl_OuterDiameter |
float |
YES |
mm |
|
dbl_InnerDiameter |
float |
YES |
||
dbl_CrossSectionArea |
float |
YES |
mm2 |
|
dbl_EndArea |
float |
YES |
(empty) |
|
dbl_MomentInertia |
float |
YES |
||
dbl_WeightPerUnitLength |
float |
YES |
kg/m |
|
dbl_SteelModulus |
float |
YES |
Pa |
|
dbl_SteelYieldStrength |
float |
YES |
||
txt_ConcreteFilledYN |
nvarchar(8) |
YES |
|
|
dbl_ConcreteDepth |
float |
YES |
(mostly empty) |
|
dbl_ConcreteStrength |
float |
YES |
(mostly empty) |
|
dbl_ConcreteModulus |
float |
YES |
(mostly empty) |
|
dbl_ReinforcementTotalXArea |
float |
YES |
(mostly empty) |
|
dbl_ReinforcementPctXArea |
float |
YES |
(empty) |
|
dbl_ReinforcementYieldStrength |
float |
YES |
(empty) |
|
dbl_ReinforcementModulus |
float |
YES |
||
dbl_CompositeModulus |
float |
YES |
Pa |
|
txt_ArtificialPlugYN |
nvarchar(8) |
YES |
||
txt_ArtificialPlugNote |
nvarchar(255) |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_DescriptionStepTaper- Description:
Step taper pile descriptive data, e.g. diameter, concrete filled (Y/N), etc.

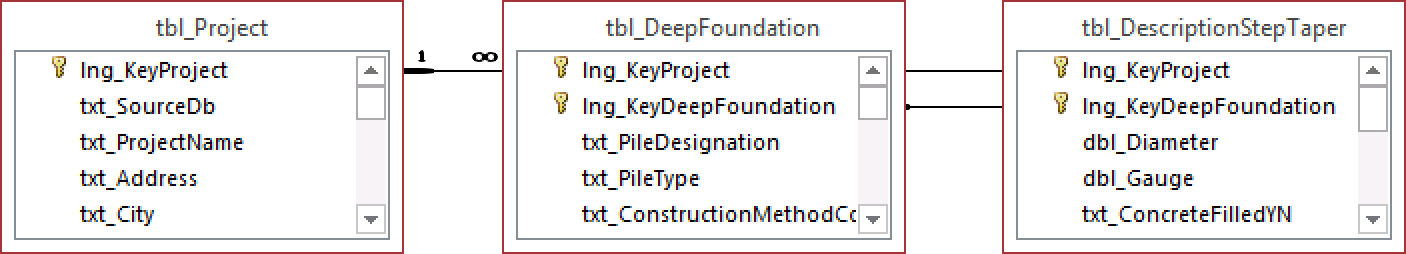

Fig. 30 Appendix: DFLTD v.2 tbl_DescriptionStepTaper Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_Diameter |
float |
YES |
mm |
|
dbl_Gauge |
float |
YES |
(empty) |
|
txt_ConcreteFilledYN |
nvarchar(1) |
YES |
|
|
dbl_SurfaceArea |
float |
YES |
||
dbl_CrossSectionArea |
float |
YES |
mm2 |
|
dbl_MomentInertia |
float |
YES |
||
dbl_Modulus |
float |
YES |
Pa |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_DescriptionTimber- Description:
Timber pile descriptive data, e.g. diameter (butt and tip), wood type, etc.

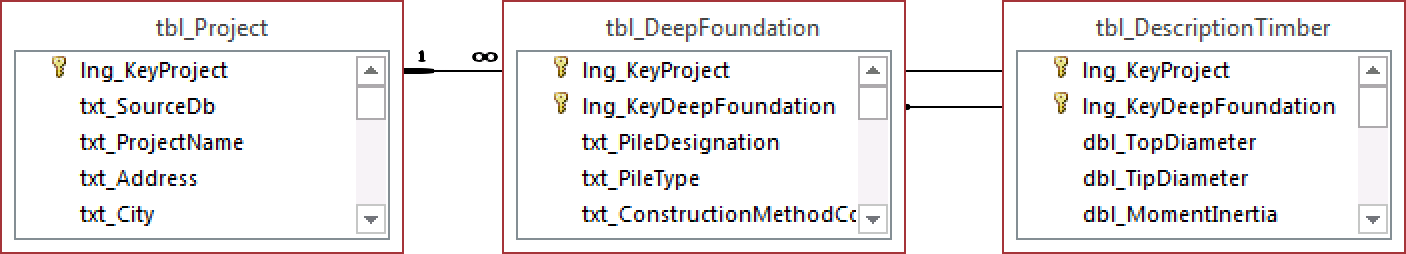

Fig. 31 Appendix: DFLTD v.2 tbl_DescriptionTimber Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_TopDiameter |
float |
YES |
mm |
|
dbl_TipDiameter |
float |
YES |
mm |
|
dbl_MomentInertia |
float |
YES |
(empty) |
|
dbl_Modulus |
float |
YES |
Pa |
|
dbl_TaperAngle |
float |
YES |
(empty) |
|
txt_WoodTypeCode |
nvarchar(5) |
YES |
||
dbl_Strength |
float |
YES |
(empty) |
|
dbl_UnitWeight |
float |
YES |
(empty) |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
Deep Foundation Installation Tables¶
- Name:
tbl_InstallAugerCast- Description:
Auger cast pile installation summary data, e.g. total concrete volume, time, etc.

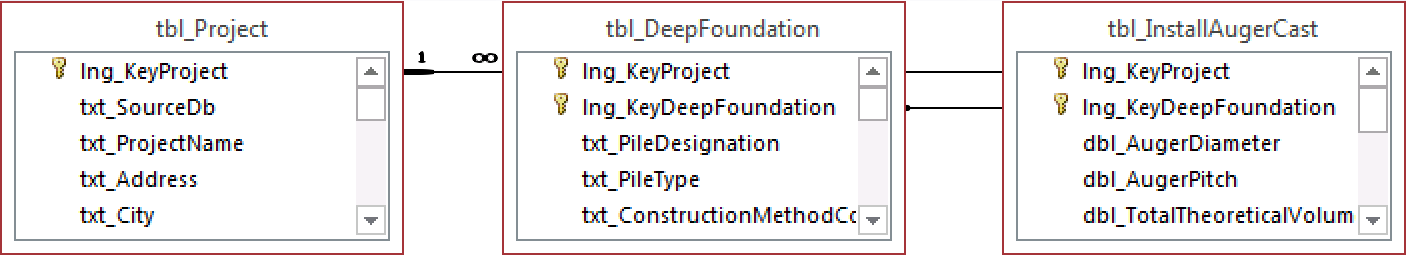

Fig. 32 Appendix: DFLTD v.2 tbl_InstallAugerCast Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_AugerDiameter |
float |
YES |
||
dbl_AugerPitch |
float |
YES |
||
dbl_TotalTheoreticalVolume |
float |
YES |
||
dbl_TotalGroutVolume |
float |
YES |
||
dbl_TimeDrilling |
float |
YES |
||
dbl_TimeGrouting |
float |
YES |
||
txt_InstallationRemarks |
nvarchar(255) |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
Warning
Table tbl_InstallAugerCastConcreteVolume is empty.
- Name:
tbl_InstallAugerCastConcreteVolume- Description:
Auger cast pile installation detail, concrete volume by depth.

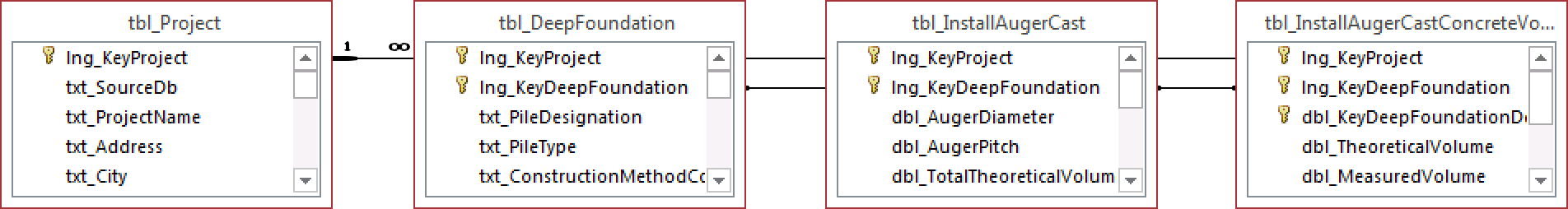

Fig. 33 Appendix: DFLTD v.2 tbl_InstallAugerCastConcreteVolume Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_KeyDeepFoundationDepth (PK) |
float |
NO |
||
dbl_TheoreticalVolume |
float |
YES |
||
dbl_MeasuredVolume |
float |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_InstallDrilledShaft- Description:
Drilled shaft installation summary data, e.g. concrete placement method, concrete volume, etc.

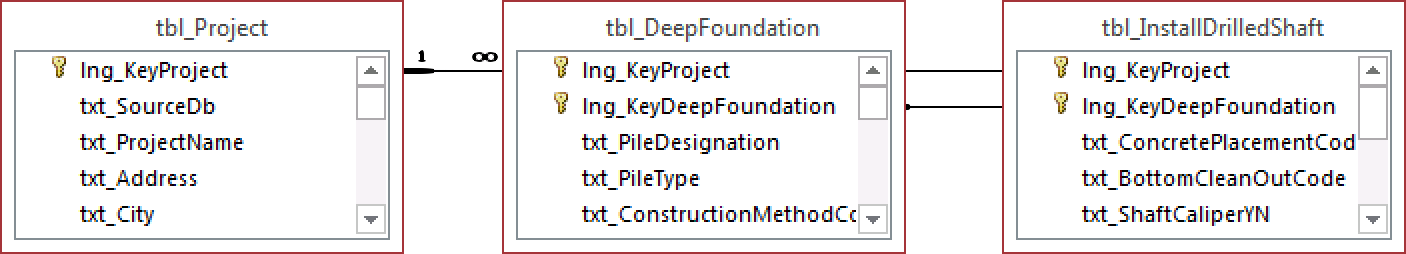

Fig. 34 Appendix: DFLTD v.2 tbl_InstallDrilledShaft Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
txt_ConcretePlacementCode |
nvarchar(10) |
YES |
||
txt_BottomCleanOutCode |
nvarchar(6) |
YES |
||
txt_ShaftCaliperYN |
nvarchar(1) |
YES |
||
txt_ConcreteVolumeYN |
nvarchar(1) |
YES |
||
txt_InstallationRemarks |
nvarchar(255) |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_InstallDrilledShaftCaliper- Description:
Osterberg load test caliper measurements by depth.

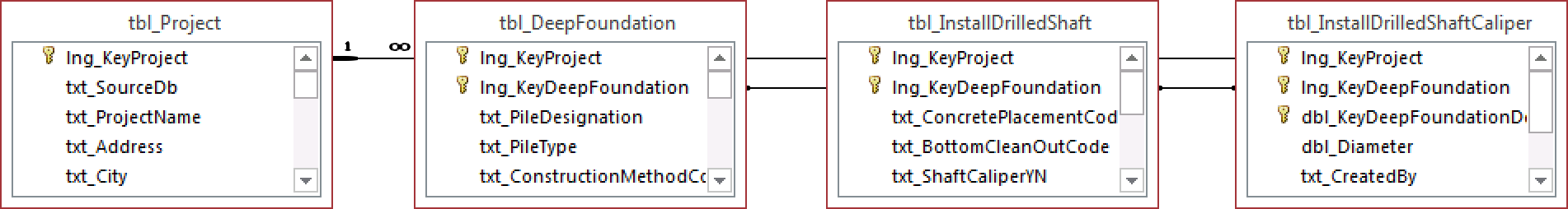

Fig. 35 Appendix: DFLTD v.2 tbl_InstallDrilledShaftCaliper Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_KeyDeepFoundationDepth (PK) |
float |
NO |
||
dbl_Diameter |
float |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_InstallDrilledShaftConcreteVolume- Description:
Drilled shaft installation detail, concrete volume by depth.

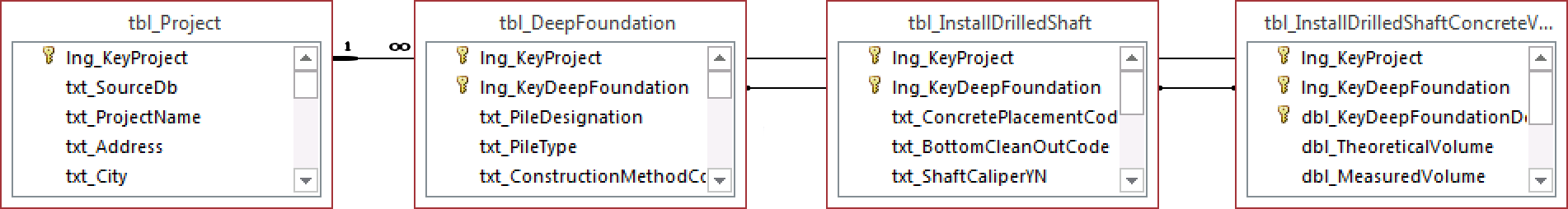

Fig. 36 Appendix: DFLTD v.2 tbl_InstallDrilledShaftConcreteVolume Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_KeyDeepFoundationDepth (PK) |
float |
NO |
||
dbl_TheoreticalVolume |
float |
YES |
||
dbl_MeasuredVolume |
float |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_InstallDrivenPile- Description:
Driven pile installation summary data, e.g. hammer type(s), final blows and set, etc.

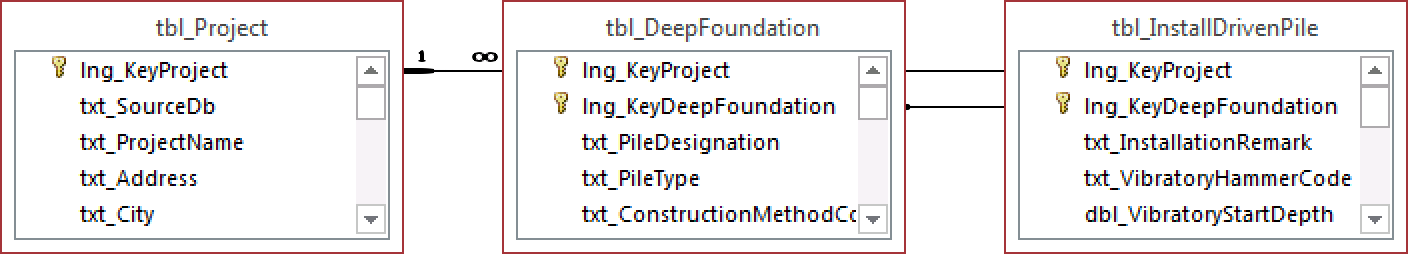

Fig. 37 Appendix: DFLTD v.2 tbl_InstallDrivenPile Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
txt_InstallationRemark |
nvarchar(255) |
YES |
||
txt_VibratoryHammerCode |
nvarchar(255) |
YES |
||
dbl_VibratoryStartDepth |
float |
YES |
||
dbl_VibratoryEndDepth |
float |
YES |
||
dte_VibratoryStartDate |
datetime2 |
YES |
||
dte_VibratoryEndDate |
datetime2 |
YES |
||
dbl_VibratoryTotalTime |
float |
YES |
||
dbl_VibratoryPenetrationRatePer305mm |
float |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_InstallDrivenPileHeader- Description:
N/A

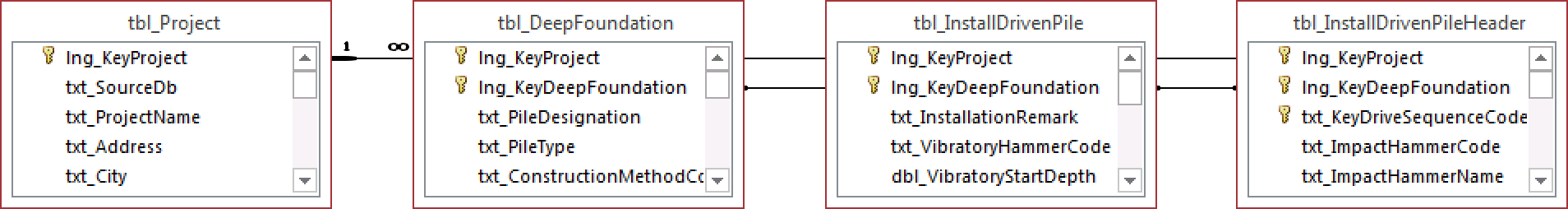

Fig. 38 Appendix: DFLTD v.2 tbl_InstallDrivenPileHeader Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
txt_KeyDriveSequenceCode (PK) |
nvarchar(5) |
NO |
||
txt_ImpactHammerCode |
nvarchar(255) |
YES |
||
txt_ImpactHammerName |
nvarchar(255) |
YES |
||
dbl_RatedEnergyEng |
float |
YES |
||
dbl_RatedEnergyMet |
float |
YES |
||
txt_PDAYN |
nvarchar(8) |
YES |
||
txt_PDASubcontractor |
nvarchar(255) |
YES |
||
dte_DateDriveStart |
datetime2 |
YES |
||
dte_DateDriveEnd |
datetime2 |
YES |
||
dbl_DriveNumberOfDays |
int |
YES |
||
dbl_DepthDriveStart |
float |
YES |
||
dbl_DepthDriveEnd |
float |
YES |
||
lng_NumberBlowsBOD |
int |
YES |
||
dbl_SetBOD |
float |
YES |
||
lng_NumberBlowsEOD |
int |
YES |
||
dbl_SetEOD |
float |
YES |
||
dbl_HelmetWeight |
float |
YES |
||
txt_PileCushionMaterial |
nvarchar(18) |
YES |
||
dbl_PileCushionArea |
float |
YES |
||
dbl_PileCushionThickness |
float |
YES |
||
dbl_PileCushionModulus |
float |
YES |
||
txt_InstallationRemark |
nvarchar(255) |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_InstallDrivenPileDriveRecord- Description:
Driven pile installation detail, e.g. driving resistance hammer blows and set, PDA data, etc.

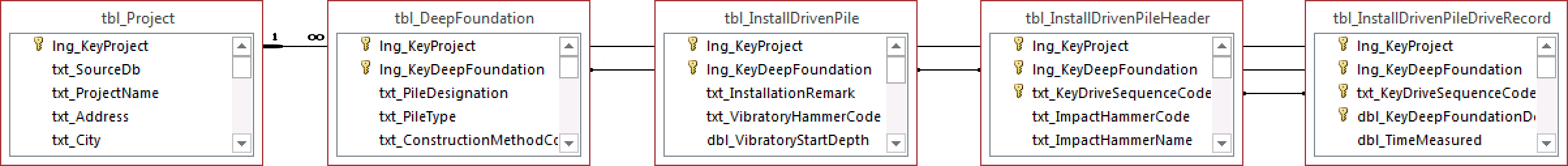

Fig. 39 Appendix: DFLTD v.2 tbl_InstallDrivenPileDriveRecord Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
txt_KeyDriveSequenceCode (PK) |
nvarchar(5) |
NO |
||
dbl_KeyDeepFoundationDepth (PK) |
float |
NO |
||
dbl_TimeMeasured |
float |
YES |
||
dbl_BlowsPerIncrement |
float |
YES |
||
dbl_BlowIncrement |
float |
YES |
||
dbl_Stroke |
float |
YES |
||
dbl_PDABlowDepth |
float |
YES |
||
dbl_PDABlowNumber |
float |
YES |
||
dbl_PDABlows |
float |
YES |
||
dbl_PDACSXStress |
float |
YES |
||
dbl_PDACSIStress |
float |
YES |
||
dbl_PDAFMXForce |
float |
YES |
||
dbl_PDAMaxTransferedEnergy |
float |
YES |
||
dbl_PDAETREnergyTransferRatio |
float |
YES |
||
dbl_PDAETHPotentialEnergyTransferRatio |
float |
YES |
||
dbl_PDACaseCapacityJc0 |
float |
YES |
||
dbl_PDACaseCapacityJc1 |
float |
YES |
||
dbl_PDACaseCapacityJc2 |
float |
YES |
||
dbl_PDACaseCapacityJc3 |
float |
YES |
||
dbl_PDACaseCapacityJc4 |
float |
YES |
||
dbl_PDACaseCapacityJc5 |
float |
YES |
||
dbl_PDACaseCapacityJc6 |
float |
YES |
||
dbl_PDACaseCapacityJc7 |
float |
YES |
||
dbl_PDACaseCapacityJc8 |
float |
YES |
||
dbl_PDACaseCapacityJc9 |
float |
YES |
||
txt_Remarks |
nvarchar(255) |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
- Name:
tbl_InstallDrivenPilePlug- Description:
N/A
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
dbl_DrivingShoeInnerDiameter |
float |
YES |
||
dbl_DrivingShoeOuterDiameter |
float |
YES |
||
txt_PlugLengthRatioYN |
nvarchar(5) |
YES |
||
txt_IncrementalFillingRatioYN |
nvarchar(5) |
YES |
||
txt_FinalFillingRatioYN |
nvarchar(5) |
YES |
||
txt_PlugRemarks |
nvarchar(255) |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_DeepFoundationDynamicTest- Description:
N/A

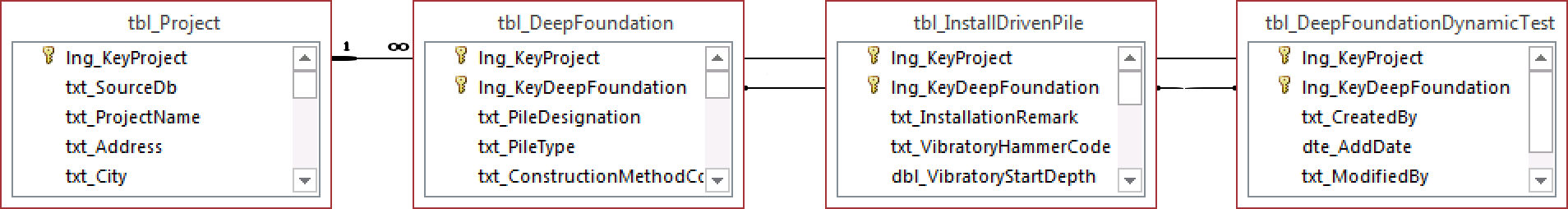

Fig. 40 Appendix: DFLTD v.2 tbl_DeepFoundationDynamicTest Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_Capwap- Description:
CAPWAP analysis summary data per blow number.

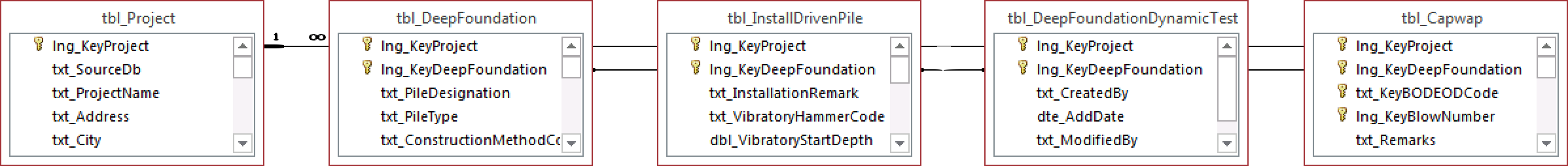

Fig. 41 Appendix: DFLTD v.2 tbl_Capwap Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
txt_KeyBODEODCode (PK) |
nvarchar(6) |
NO |
||
lng_KeyBlowNumber (PK) |
int |
NO |
||
txt_Remarks |
nvarchar(255) |
YES |
||
dbl_SetupDays |
float |
YES |
||
dbl_CapacityTotal |
float |
YES |
||
dbl_CapacityShaft |
float |
YES |
||
dbl_CapacityToe |
float |
YES |
||
dbl_UnitResistanceToe |
float |
YES |
||
dbl_CaseDampingShaft |
float |
YES |
||
dbl_CaseDampingToe |
float |
YES |
||
dbl_SmithDampingShaft |
float |
YES |
||
dbl_SmithDampingToe |
float |
YES |
||
dbl_QuakeShaft |
float |
YES |
||
dbl_QuakeToe |
float |
YES |
||
dbl_UnldLegacy |
float |
YES |
||
dbl_CsknLegacy |
float |
YES |
||
dbl_CtoeLegacy |
float |
YES |
||
dbl_LsknLegacy |
float |
YES |
||
dbl_LtoeLegacy |
float |
YES |
||
dbl_SkdpLegacy |
float |
YES |
||
dbl_BtdpLegacy |
float |
YES |
||
dbl_MsknLegacy |
float |
YES |
||
dbl_MtoeLegacy |
float |
YES |
||
dbl_TgapLegacy |
float |
YES |
||
dbl_PlugLegacy |
float |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_CapwapDetail- Description:
CAPWAP analysis details at each analysis depth.

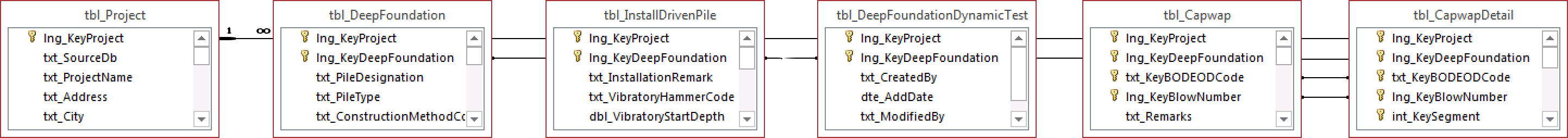

Fig. 42 Appendix: DFLTD v.2 tbl_CapwapDetail Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
txt_KeyBODEODCode (PK) |
nvarchar(6) |
NO |
||
lng_KeyBlowNumber (PK) |
int |
NO |
||
int_KeySegment (PK) |
int |
NO |
||
dbl_DistanceBelowGages |
float |
YES |
||
dbl_DepthBelowGrade |
float |
YES |
||
dbl_RuForceInSegment |
float |
YES |
||
dbl_ForceInPile |
float |
YES |
||
dbl_SumRuSumSegmentForcesSide |
float |
YES |
||
dbl_SegmentUnitResistance |
float |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
Load Test Tables¶
- Name:
tbl_LoadTest- Description:
Load test general descriptive data, e.g. test type, date, etc.

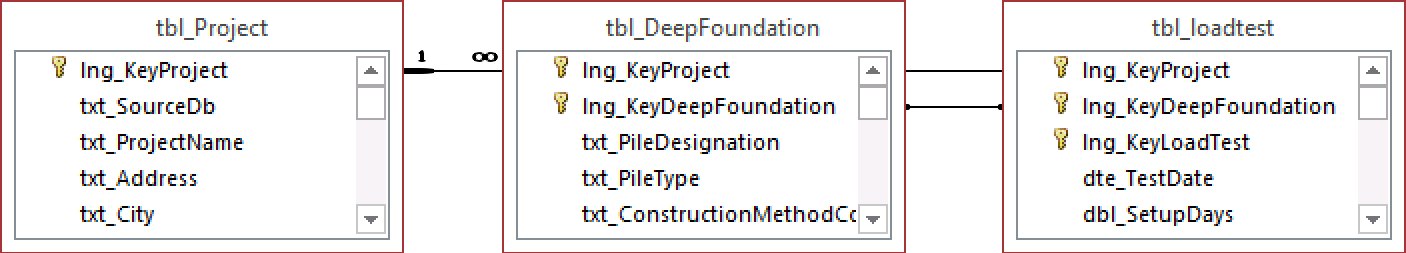

Fig. 43 Appendix: DFLTD v.2 tbl_LoadTest Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
lng_KeyLoadTest (PK) |
int |
NO |
||
dte_TestDate |
datetime2 |
YES |
date |
|
dbl_SetupDays |
float |
YES |
days |
|
txt_LoadTestSubcontractor |
nvarchar(255) |
YES |
|
|
txt_LoadTestCode |
nvarchar(255) |
YES |
|
|
txt_LoadTypeCode |
nvarchar(255) |
YES |
|
|
txt_LoadDirectionCode |
nvarchar(225) |
YES |
(empty) |
|
txt_ASTMProcedureCode |
nvarchar(255) |
YES |
|
|
txt_MaxLoadCriteriaCode |
nvarchar(255) |
YES |
(LDOEP only) |
|
txt_FailCriteriaYN |
nvarchar(255) |
YES |
||
txt_CyclicTestYN |
nvarchar(255) |
YES |
||
txt_LoadXferDataYN |
nvarchar(255) |
YES |
||
txt_MeasuredSideYN |
nvarchar(255) |
YES |
||
txt_MeasuredTipYN |
nvarchar(255) |
YES |
||
dbl_PileTopElevAtTest |
float |
YES |
||
dbl_GroundElevAtTest |
float |
YES |
||
dbl_WaterTableAtTest |
float |
YES |
||
dbl_StaticTotalLoadApplied |
float |
YES |
||
dbl_StaticTotalDisplacement |
float |
YES |
||
dbl_StaticSideForce |
float |
YES |
||
dbl_StaticBaseForce |
float |
YES |
||
dbl_StaticSideForceWithResidual |
float |
YES |
(empty) |
|
dbl_StaticBaseForceWithResidual |
float |
YES |
(empty) |
|
dbl_StaticBaseDisplacement |
float |
YES |
(empty) |
|
txt_StatnamicTestIDLegacy |
nvarchar(255) |
YES |
(empty) |
|
dbl_StatnamicDevice |
float |
YES |
||
txt_StatnamicCatchSystem |
nvarchar(5) |
YES |
||
dbl_StatnamicTotTime |
float |
YES |
(empty) |
|
dbl_StatnamicPreLoad |
float |
YES |
(empty) |
|
dbl_StatnamicPreDisplacement |
float |
YES |
(empty) |
|
dbl_StatnamicMaxLoad |
float |
YES |
||
dbl_StatnamicMaxDisplacement |
float |
YES |
||
dbl_StatnamicMaxLoadMiddendorp |
float |
YES |
||
dbl_StatnamicMaxDisplacementMiddendorp |
float |
YES |
||
dbl_StatnamicMaxLoadSUP |
float |
YES |
||
dbl_StatnamicMaxDisplacementSUP |
float |
YES |
||
dbl_StatnamicMaxLoadMUP |
float |
YES |
||
dbl_StatnamicMaxDisplacementMUP |
float |
YES |
||
dbl_MaxUnitBaseResistance |
float |
YES |
(empty) |
|
dbl_OCell1RatedCapacity |
float |
YES |
(empty) |
|
dbl_OCell1Depth |
float |
YES |
(empty) |
|
dbl_OCell1MaxUniDirectionalForce |
float |
YES |
(empty) |
|
dbl_OCell1MaxUpDisplacement |
float |
YES |
(empty) |
|
dbl_OCell1MaxDownDisplacement |
float |
YES |
(empty) |
|
txt_OCell1Remarks |
nvarchar(255) |
YES |
(empty) |
|
dbl_OCell2RatedCapacity |
float |
YES |
(empty) |
|
dbl_OCell2Depth |
float |
YES |
(empty) |
|
dbl_OCell2MaxUniDirectionalForce |
float |
YES |
(empty) |
|
dbl_OCell2MaxUpDisplacement |
float |
YES |
(empty) |
|
dbl_OCell2MaxDownDisplacement |
float |
YES |
(empty) |
|
txt_OCell2Remarks |
nvarchar(255) |
YES |
(empty) |
|
dbl_OCell3RatedCapacity |
float |
YES |
(empty) |
|
dbl_OCell3Depth |
float |
YES |
(empty) |
|
dbl_OCell3MaxUniDirectionalForce |
float |
YES |
(empty) |
|
dbl_OCell3MaxUpDisplacement |
float |
YES |
(empty) |
|
dbl_OCell3MaxDownDisplacement |
float |
YES |
(empty) |
|
txt_OCell3Remarks |
nvarchar(255) |
YES |
(empty) |
|
dbl_OCellMaxTopLoad |
float |
YES |
(almost empty) |
|
dbl_OCellMaxTopDisplacement |
float |
YES |
(almost empty) |
|
dbl_OCellMaxTipLoad |
float |
YES |
(almost empty) |
|
dbl_OCellMaxTipDisplacement |
float |
YES |
(almost empty) |
|
txt_StaticLegacy |
nvarchar(1) |
YES |
(empty) |
|
txt_LoadTestRemarks |
nvarchar(255) |
YES |
(empty) |
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_LoadTestStatic- Description:
Static load test force displacement data by load number and time.

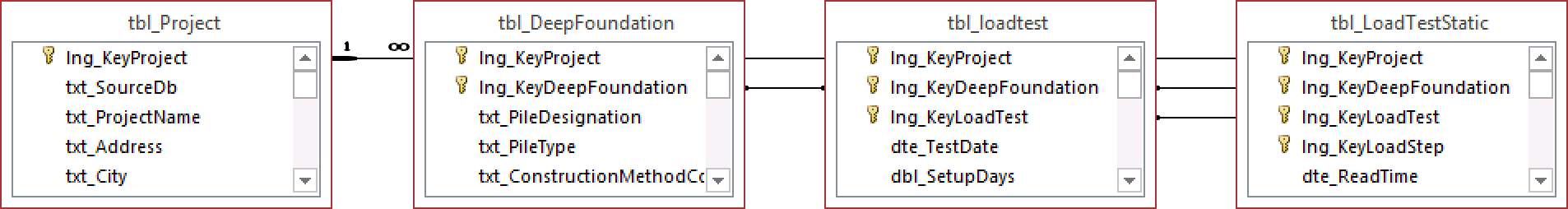

Fig. 44 Appendix: DFLTD v.2 tbl_LoadTestStatic Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
lng_KeyLoadTest (PK) |
int |
NO |
||
lng_KeyLoadStep (PK) |
int |
NO |
||
dte_ReadTime |
datetime2 |
YES |
(empty) |
|
dbl_ElapsedTime |
float |
YES |
(empty) |
|
dbl_TotalAppliedLoadGeneric |
float |
YES |
N |
|
dbl_TotalAppliedLoadCell |
float |
YES |
N |
|
dbl_TotalAppliedLoadJack |
float |
YES |
N |
|
dbl_TotalAppliedLoadStrainGage |
float |
YES |
N |
|
dbl_DisplGeneric |
float |
YES |
mm |
|
dbl_DisplPileHeadSurvey |
float |
YES |
mm |
|
dbl_DisplDialGage |
float |
YES |
mm |
|
dbl_DisplWireLine |
float |
YES |
(empty) |
|
dbl_DisplLiquidLevelGage |
float |
YES |
mm |
|
txt_CreatedBy |
nvarchar(20) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(20) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_LoadTestStaticInclinometer- Description:
Static load test inclinometer measurements, depth and inclination.

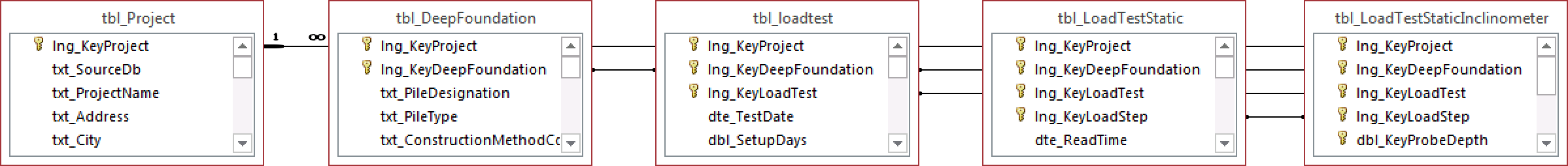

Fig. 45 Appendix: DFLTD v.2 tbl_LoadTestStaticInclinometer Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
lng_KeyLoadTest (PK) |
int |
NO |
||
lng_KeyLoadStep (PK) |
int |
NO |
||
dbl_KeyProbeDepth (PK) |
float |
NO |
||
dbl_Displacement |
float |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
- Name:
tbl_LoadTestStatnamic- Description:
Statnamic load test force displacement and force distribution data by load number and time, including derived results from Middendorp and SUP methods.

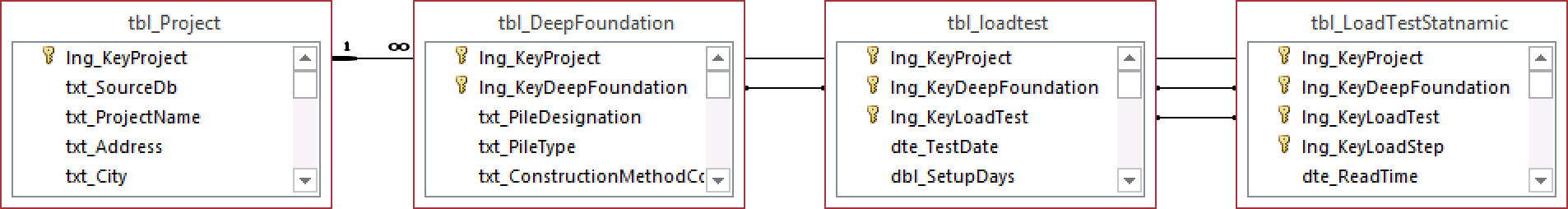

Fig. 46 Appendix: DFLTD v.2 tbl_LoadTestStatnamic Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
lng_KeyLoadTest (PK) |
int |
NO |
||
lng_KeyLoadStep (PK) |
int |
NO |
||
dte_ReadTime |
float |
YES |
||
dbl_ElapsedTIme |
float |
YES |
||
dbl_StatnamicForce |
float |
YES |
||
dbl_StatnamicDisplacement |
float |
YES |
||
dbl_StatnamicForceMiddendorp |
float |
YES |
||
dbl_StatnamicDisplacementMiddendorp |
float |
YES |
||
dbl_StatnamicForceSUP |
float |
YES |
||
dbl_StatnamicDisplacementSUP |
float |
YES |
||
dbl_StatnamicForceMUP |
float |
YES |
||
dbl_StatnamicDisplacementMUP |
float |
YES |
||
dbl_StatnamicForceBase |
float |
YES |
||
dbl_StatnamicDisplacementBase |
float |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
- Name:
tbl_LoadTestOsterberg- Description:
Osterberg load test force displacement data by load number and time.
Fig. 47 Appendix: DFLTD v.2 tbl_LoadTestOsterberg Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
lng_KeyLoadTest (PK) |
int |
NO |
||
lng_KeyLoadStep (PK) |
int |
NO |
||
dte_ReadTime |
datetime2 |
YES |
||
dbl_ElapsedTime |
float |
YES |
||
dbl_TopLoad |
float |
YES |
||
dbl_TopDisplacement |
float |
YES |
||
dbl_TipLoad |
float |
YES |
||
dbl_TipDisplacement |
float |
YES |
||
dbl_OCell1Load |
float |
YES |
||
dbl_OCell1NetLoad |
float |
YES |
||
dbl_OCell1Expansion |
float |
YES |
||
dbl_OCell1UpDisplacement |
float |
YES |
||
dbl_OCell1DownDisplacement |
float |
YES |
||
dbl_OCell2Load |
float |
YES |
||
dbl_OCell2NetLoad |
float |
YES |
||
dbl_OCell2Expansion |
float |
YES |
||
dbl_OCell2UpDisplacement |
float |
YES |
||
dbl_OCell2DownDisplacement |
float |
YES |
||
dbl_OCell3Load |
float |
YES |
||
dbl_OCell3NetLoad |
float |
YES |
||
dbl_OCell3Expansion |
float |
YES |
||
dbl_OCell3UpDisplacement |
float |
YES |
||
dbl_OCell3DownDisplacement |
float |
YES |
||
dbl_EquivalentMaxTopLoad |
float |
YES |
||
dbl_EquivalentMaxTopDisplacement |
float |
YES |
||
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_LoadTestSegmentBase- Description:
Segment base resistance results.

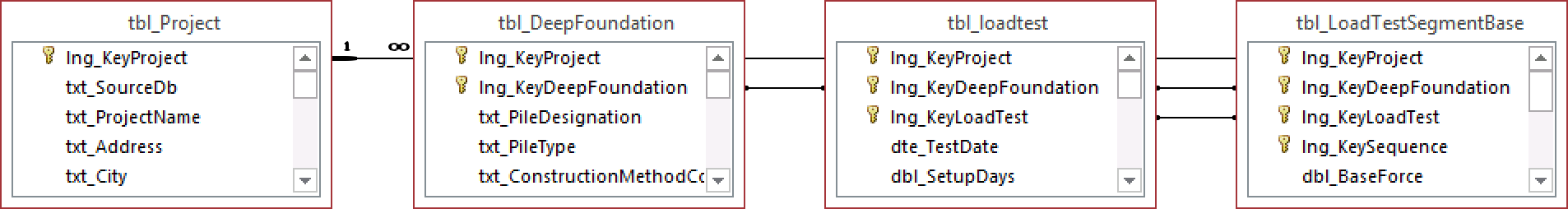

Fig. 48 Appendix: DFLTD v.2 tbl_LoadTestSegmentBase Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
lng_KeyLoadTest (PK) |
int |
NO |
||
lng_KeySequence (PK) |
int |
NO |
||
dbl_BaseForce |
float |
YES |
||
dbl_BaseForceWithResidual |
float |
YES |
||
dbl_UnitBaseResistance |
float |
YES |
||
dbl_BaseDisplacement |
float |
YES |
||
txt_CreatedBy |
nvarchar(15) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(15) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_LoadTestSegment- Description:
Segment definition for load transfer data (side and base resistance) from all test types.

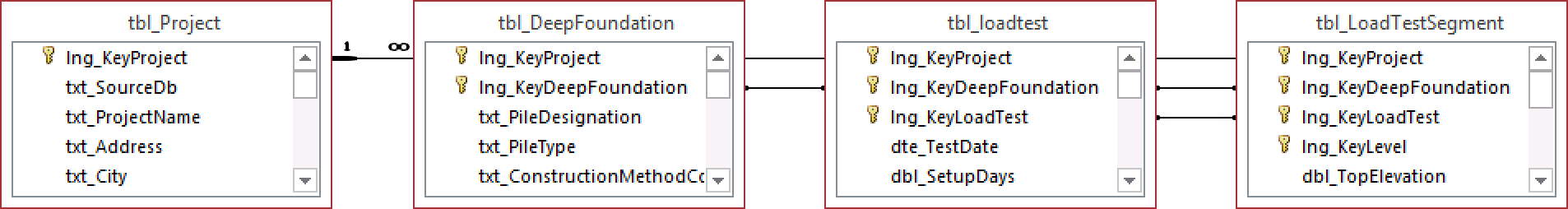

Fig. 49 Appendix: DFLTD v.2 tbl_LoadTestSegment Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
lng_KeyLoadTest (PK) |
int |
NO |
||
lng_KeyLevel (PK) |
int |
NO |
||
dbl_TopElevation |
float |
YES |
||
dbl_BottomElevation |
float |
YES |
||
dbl_MaxUnitSideResistance |
float |
YES |
||
dbl_DisplAtMaxSideResistance |
float |
YES |
||
txt_DisplLocationCode |
nvarchar(5) |
YES |
||
txt_CreatedBy |
nvarchar(15) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(15) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_LoadTestSegmentSide- Description:
Segment side resistance results.

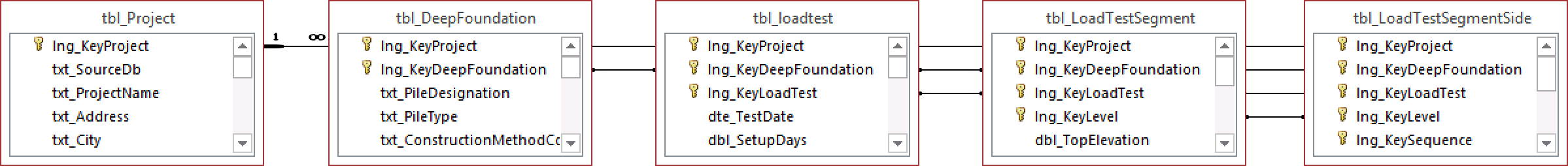

Fig. 50 Appendix: DFLTD v.2 tbl_LoadTestSegmentSide Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
lng_KeyLoadTest (PK) |
int |
NO |
||
lng_KeyLevel (PK) |
int |
NO |
||
lng_KeySequence (PK) |
int |
NO |
||
dbl_UnitSideResistance |
float |
YES |
||
dbl_SegmentDisplacement |
float |
YES |
||
txt_CreatedBy |
nvarchar(15) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(15) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
- Name:
tbl_LoadTestForceDistributionGage- Description:
N/A

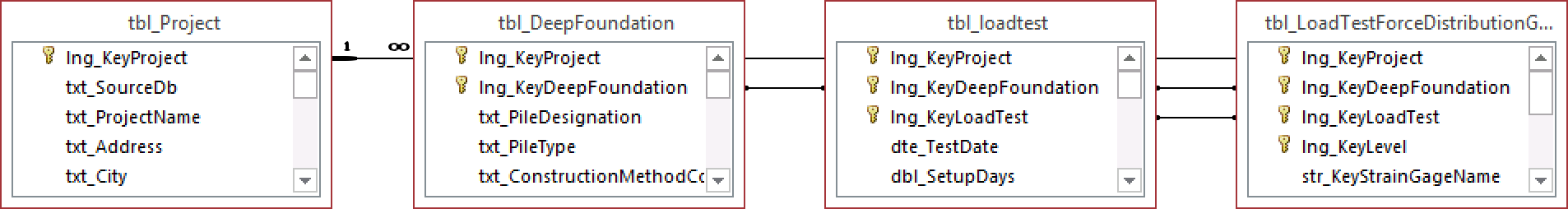

Fig. 51 Appendix: DFLTD v.2 tbl_LoadTestForceDistributionGage Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
lng_KeyLoadTest (PK) |
int |
NO |
||
lng_KeyLevel (PK) |
int |
NO |
||
str_KeyStrainGageName |
nvarchar(255) |
NO |
||
dbl_StrainGageElevation |
float |
YES |
||
dbl_ResidualForce |
float |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_CreatedBy |
nvarchar(50) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(50) |
YES |
- Name:
tbl_LoadTestForceDistributionData- Description:
N/A

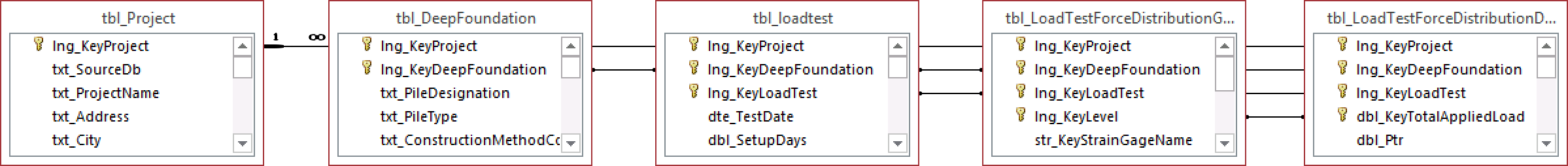

Fig. 52 Appendix: DFLTD v.2 tbl_LoadTestForceDistributionData Table Relationships¶
Column |
Type |
Null |
Units |
NYU GPLTD-W Field |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
lng_KeyLoadTest (PK) |
int |
NO |
||
dbl_KeyTotalAppliedLoad (PK) |
float |
NO |
||
dbl_Ptr |
float |
YES |
||
dbl_Force01 |
float |
YES |
||
dbl_Force02 |
float |
YES |
||
dbl_Force03 |
float |
YES |
||
dbl_Force04 |
float |
YES |
||
dbl_Force05 |
float |
YES |
||
dbl_Force06 |
float |
YES |
||
dbl_Force07 |
float |
YES |
||
dbl_Force08 |
float |
YES |
||
dbl_Force09 |
float |
YES |
||
dbl_Force10 |
float |
YES |
||
dbl_Force11 |
float |
YES |
||
dbl_Force12 |
float |
YES |
||
dbl_Force13 |
float |
YES |
||
dbl_Force14 |
float |
YES |
||
dbl_Force15 |
float |
YES |
||
dbl_Force16 |
float |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_CreatedBy |
nvarchar(50) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(50) |
YES |
- Name:
tbl_LoadTestNominalResistance- Description:
Load test nominal resistance for one or more failure criteria, e.g. failure load, displacement, etc.

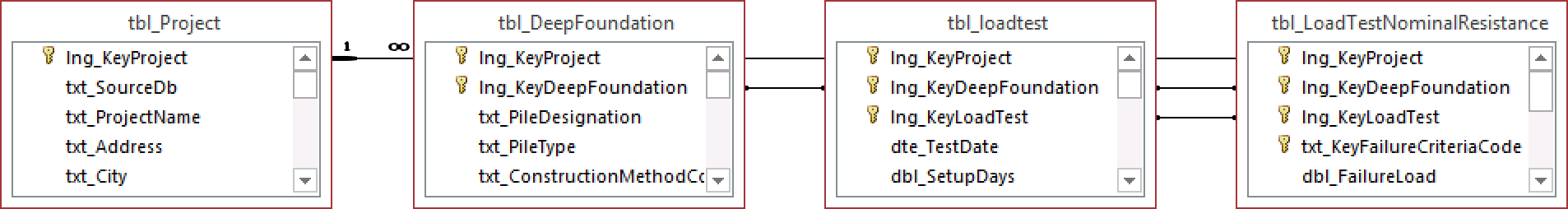

Fig. 53 Appendix: DFLTD v.2 tbl_LoadTestNominalResistance Table Relationships¶
Original Attribute |
Type |
Null |
Units |
New Attribute |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
||
lng_KeyDeepFoundation (PK) |
int |
NO |
||
lng_KeyLoadTest (PK) |
int |
NO |
||
txt_KeyFailureCriteriaCode (PK) |
nvarchar(5) |
NO |
|
|
dbl_FailureLoad |
float |
YES |
|
|
dbl_SideResistance |
float |
YES |
(almost empty) |
|
dbl_BaseResistance |
float |
YES |
(almost empty) |
|
dbl_Displacement |
float |
YES |
|
|
txt_CreatedBy |
nvarchar(16) |
YES |
||
dte_AddDate |
datetime2 |
YES |
||
txt_ModifiedBy |
nvarchar(18) |
YES |
||
dte_ModifiedDate |
datetime2 |
YES |
Attachments Table¶
- Name:
tbl_Attachments- Description:
N/A
Original Attributes |
Type |
Null |
Units |
New Attributes |
|---|---|---|---|---|
lng_KeyProject (PK) |
int |
NO |
(empty) |
|
txt_KeyPathAndFile (PK) |
nvarchar(255) |
NO |
(empty) |
|
txt_FileName |
nvarchar(255) |
YES |
(empty) |
|
txt_FileDescription |
nvarchar(255) |
YES |
(empty) |
|
txt_Category |
nvarchar(255) |
YES |
(empty) |
|
txt_KeyExplorationName |
nvarchar(25) |
YES |
(empty) |
|
txt_KeyExplorationType |
nvarchar(25) |
YES |
(empty) |
|
lng_KeyDeepFoundation |
int |
YES |
(empty) |
|
lng_KeyLoadTest |
int |
YES |
(empty) |
|
txt_CreatedBy |
nvarchar(255) |
YES |
(empty) |
|
dte_AddDate |
datetime2 |
YES |
(empty) |
|
txt_ModifiedBy |
nvarchar(255) |
YES |
(empty) |
|
dte_ModifiedDate |
datetime2 |
YES |
(empty) |
LAPLTD Tables and Attributes¶
Original Attribute |
Description |
Units |
New Attribute |
|---|---|---|---|
ID |
|||
Project_Num_H |
H Number |
|
|
Project_Num_old |
Project number (old) |
|
|
Project_Name |
Project Name |
|
|
Route |
Route foundation supports |
|
|
_OldID |
|||
Totals_TP |
Test Pile Records |
||
Path_Network |
Location of file folder on T:\ drive |
||
_OldID2 |
|||
Contractor |
Contractor performing foundation work |
|
|
Parish_1 |
Primary parish in which the project is located |
|
|
Parish_2 |
Secondary parish in which the project is located |
||
Date_Latest |
Drive date of latest test pile |
||
Totals_MP |
Monitor Pile Records |
||
Totals_IP |
Indicator Pile Records |
||
Totals_Other |
Other Pile Type Records |
||
Totals_TS |
Test Shaft Records |
||
Source |
Source |
|
|
Notes |
(empty) |
Original Attribute |
Description |
Units |
New Attribute |
|---|---|---|---|
ID |
|||
lt_Time |
Elapsed time |
minutes |
|
lt_Load |
Applied Load |
tons |
|
lt_Deflection |
Pile top deflection |
inches |
|
_OldID |
(empty) |
||
Notes |
Loading increment notes |
||
lt_Event |
Test Event |
Original Attribute |
Description |
Units |
New Attribute |
|---|---|---|---|
ID |
|||
Date_Tested |
Date of test event |
||
Time_Elapsed |
Elapsed time since EOD |
hours |
|
Capacity_Ult |
Ultimate capacity derived from test event |
tons |
|
Capacity_End |
End bearing capacity derived from test event |
tons |
|
Capacity_Skin |
Skin Friction capacity derived from test event |
tons |
|
Stroke |
Observed stroke |
feet |
|
Blow_Count |
Observed blow count at time of event |
bl/ft |
|
Jc |
Damping constant associated with PDA capacity associated with Rx method |
||
JRs |
Damping constant associated with PDA capacity associated with Rs method |
||
MQ |
Match quality from CAPWAP analysis |
||
Failure |
Did static load test fail the pile? |
boolean |
|
Ult_Cap_Method |
Butler-Hoy, Davisson (piles up to 24”), Modified Davisson (piles larger than 24”) |
|
|
Notes |
Field testing notes |
|
|
_OldID |
|||
EMX |
Hammer Enargy |
kip-ft |
|
_OldID2 |
|||
Pile_Name |
Name of the test pile |
||
Event_Type |
Type of test event used |
||
Loc_Boring_Log |
Location of File: Boring Log |
(empty) |
|
Loc_Pile_Install _Records |
Location of File: Pile Installation Records |
(empty) |
|
Loc_Load_Test _Records |
Location of File: Load Testing Records |
(empty) |
|
SP_Weight |
Striker Plate Weight |
kips |
|
SP_Diameter |
Striker Plate Diameter |
inches |
|
SP_Thickness |
Striker Plate Thickness |
inches |
|
HC1_Material |
Hammer Cushion 1 Material |
||
HC1_Layers |
Hammer Cushion 1 Layers |
||
HC1_Thickness |
Hammer Cushion 1 Thickness |
inches |
|
HC2_Material |
Hammer Cushion 2 Material |
||
HC2_Layers |
Hammer Cushion 2 Layers |
||
HC2_Thickness |
Hammer Cushion 2 Thickness |
inches |
|
HC_Modulus_OR |
Hammer Cushion Modulus of Elasticity OVERRIDE |
ksi |
(empty) |
HC_CoR_OR |
Hammer Cushion Coefficient of Restitution OVERRIDE |
(empty) |
|
M1_M2_Ratio |
M1/M2 Thickness Ratio |
||
Helmet_Dimension |
Helmet (Pile Cap) Dimension |
(empty) |
|
Helmet_Weight |
Helmet (Pile Cap) Weight |
kips |
|
Helmet_Ins_Weight |
Helmet (Pile Cap) Inserts Weight |
kips |
(empty) |
PC_Material |
Pile Cushion Material |
||
PC_Thickness |
Pile Cushion Thickness |
inches |
|
PC_Area |
Pile Cushion Area |
sq.in. |
|
Pile_Cushion |
Pile Cushion |
||
PC_Modulus_OR |
Pile Cushion Modulus OVERRIDE |
ksi |
(empty) |
PC_CoR_OR |
Pile Cushion Coefficient of Restitution OVERRIDE |
(empty) |
|
Hammer_Cushion |
Hammer Cushion |
||
Quake_AvgSkin |
Avg. Skin Quake |
inches |
|
Quake_AvgToe |
Avg. Toe Quake |
inches |
|
Damping_AvgSkin |
Avg. Skin Smith Damping |
s/ft |
|
Damping_AvgToe |
Avg. Toe Smith Damping |
s/ft |
|
Percentage_Shaft _Resistance |
Shaft Resistance Percentage |
% |
(empty) |
Dist_Shape_Number |
Distribution Shape Number |
(empty) |
|
Resistance _Distribution_Opt |
Resistance Distribution Option |
(empty) |
|
Ult_Capacity_1 |
Ultimate Capacity 1 |
kips |
(empty) |
Ult_Capacity_2 |
Ultimate Capacity 2 |
kips |
(empty) |
Ult_Capacity_3 |
Ultimate Capacity 3 |
kips |
(empty) |
Ult_Capacity_4 |
Ultimate Capacity 4 |
kips |
(empty) |
Ult_Capacity_5 |
Ultimate Capacity 5 |
kips |
(empty) |
Ult_Capacity_6 |
Ultimate Capacity 6 |
kips |
(empty) |
Ult_Capacity_7 |
Ultimate Capacity 7 |
kips |
(empty) |
Ult_Capacity_8 |
Ultimate Capacity 8 |
kips |
(empty) |
Ult_Capacity_9 |
Ultimate Capacity 9 |
kips |
(empty) |
Ult_Capacity_10 |
Ultimate Capacity 10 |
kips |
(empty) |
Hammer |
|||
WEAP_Hammer _Option |
Diesel Hammer Operation Option |
(empty) |
|
WEAP_Pressure_FS |
Diesel Hammer Pressure Fuel Setting |
(empty) |
|
Override_Pressure _FS |
Override Diesel Hammer Pressure for Fuel Setting |
(empty) |
|
Override_Efficiency |
Override Hammer Efficiency |
(empty) |
|
Override_Stroke |
Hammer Equivalent Maximum Stroke |
feet |
(empty) |
Override_Frequency |
Frequency for VIB hammer |
Hz |
(empty) |
Elev_TipEOD |
Pile tip elevation at end-of-drive |
feet |
|
Quake_Shaft |
Soil Parameter: Shaft Quake |
inches |
(empty) |
Quake_Toe |
Soil Parameter: Toe Quake |
inches |
(empty) |
Damping_Shaft |
Soil Parameter: Damping Shaft |
s/ft |
(empty) |
Damping_Toe |
Soil Parameter: Toe Damping |
s/ft |
(empty) |
Original Attribute |
Description |
Units |
New Attribute |
|---|---|---|---|
ID |
|||
Pile_Name |
Test pile name |
|
|
Latitude |
Latitude |
decimal degrees |
|
Longitude |
Longitude |
decimal degrees |
|
Station |
Station |
feet |
|
Sta_offset |
Station Offset |
||
Near_Boring |
Name of the nearest soil boring |
|
|
Near_CPT |
Name of the nearest CPT sounding |
|
|
Date_Driven |
Date initial pile driving completed |
|
|
Length |
Total pile length |
feet |
|
Elev_Reference |
Reference Elevation: Measured, Estimated, or Unknown? |
||
Elev_GS |
Ground surface elevation |
feet |
|
Elev_Casing |
Elevation of bottom of casing |
feet |
|
Elev_Cutoff |
Pile cutoff elevation |
feet |
|
Elev_Splice |
Pile splice elevation |
feet |
(empty) |
Elev_TipEOD |
Pile tip elevation at end-of-drive |
feet |
|
Elev_TipDesign |
Design pile tip elevation |
feet |
|
Notes |
Test pile notes |
|
|
LRFD |
Pile designed according to LRFD? |
boolean |
|
Load_Factored |
Factored load used in LRFD design |
tons |
|
Resist_Factor |
Resistance factor used in LRFD design |
||
Load_Design |
Design load used in ASD design |
tons |
|
Load_Target |
Ultimate pile resistance needed to verify design |
tons |
|
Setup_Factor |
Pile setup factor |
||
Designer |
EOR for pile design |
||
_OldID |
|||
Instrumented |
Was the pile instrumented? |
boolean |
|
Elev_Scour |
Scour Elevation |
feet |
|
Modulus |
Elastic modulus of pile |
ksi |
|
_OldID2 |
|||
Project_ID |
Project name |
||
Hammer |
Type of hammer used to drive pile |
||
Pile_Type |
Type/Size of pile |
||
TP_Category |
Type of test pile |
||
Soil_Type |
Type of soil pile is tipped into |
|
|
Steel_Yield_Strength |
Steel Pile Yield Strength, Fy |
ksi |
(empty) |
Concrete_Strength |
Concrete Pile Yield Strength, Fy |
ksi |
(empty) |
Pile_Splice |
Is the pile spliced? |
boolean |
|
Stroke_EOID |
Stroke [ft] closest available data to EOID |
feet |
|
Blowcount_EOID |
Blow Count - closest available data to EOID |
bl/ft |
|
StokeBlCnt_Notes |
Notes for Stroke and Blow Count Values |
